LED modules for LEDiL optics

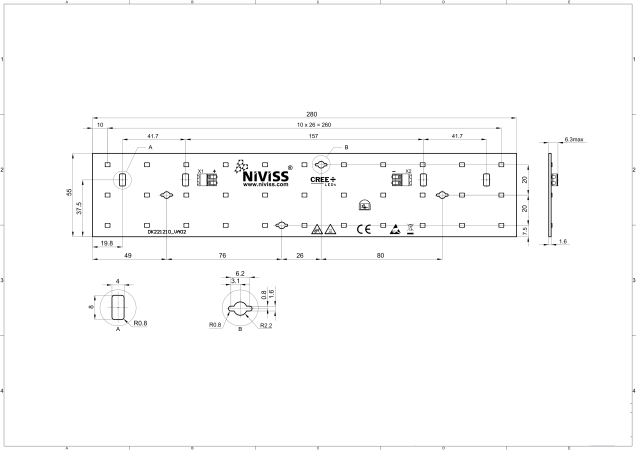

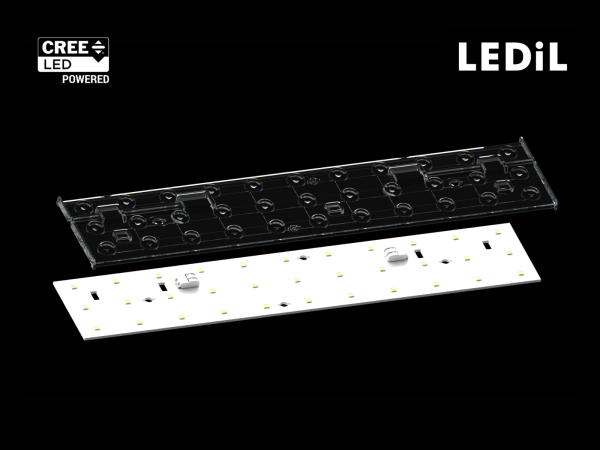

Linear 33 LED 2835 Module 280x55mm - FLORENCE-3R

Max efficiency [lm/W]	204 lm/W
Voltage [Vf]	33 V
Length [mm]	280 mm
Width [mm]	55 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	MCPCB
Compatible optics	Florence 3R

Allowed variants: 14

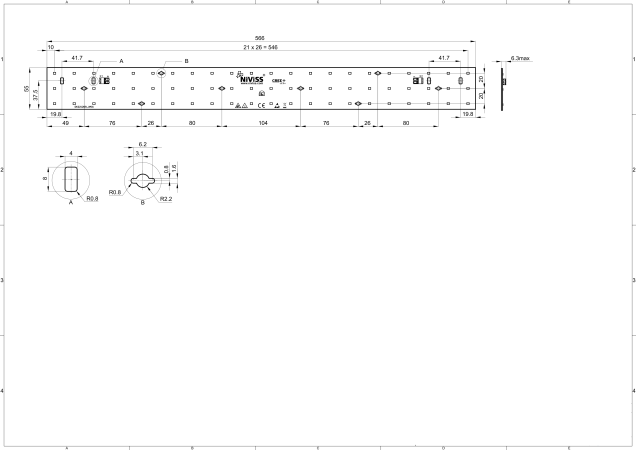

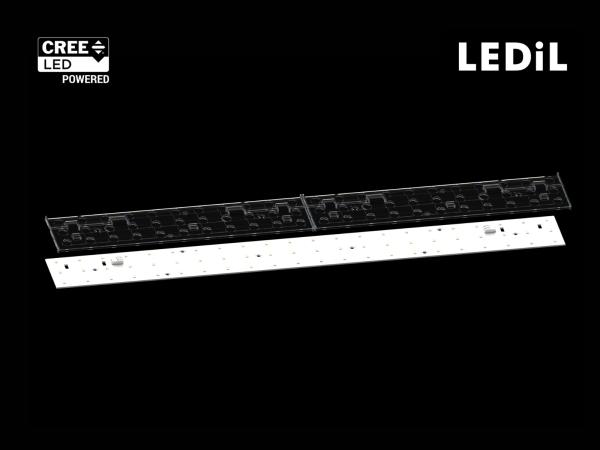

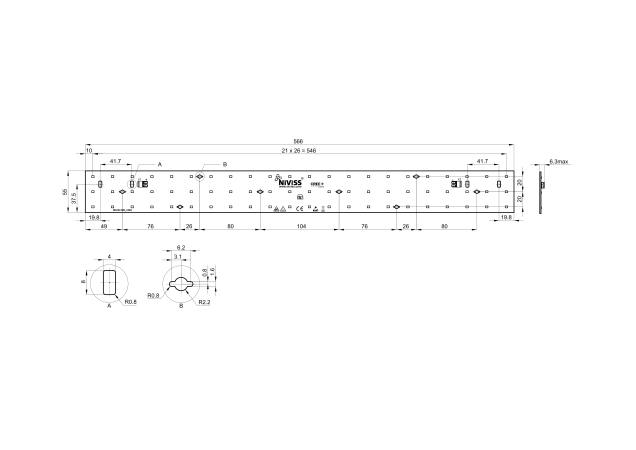

Linear 66 LED 2835 Module 560x55mm - FLORENCE-3R x2

Max efficiency [lm/W]	207 lm/W
Voltage [Vf]	33 V
Length [mm]	566 mm
Width [mm]	55 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	MCPCB
Compatible optics	Florence 3R

Allowed variants: 14

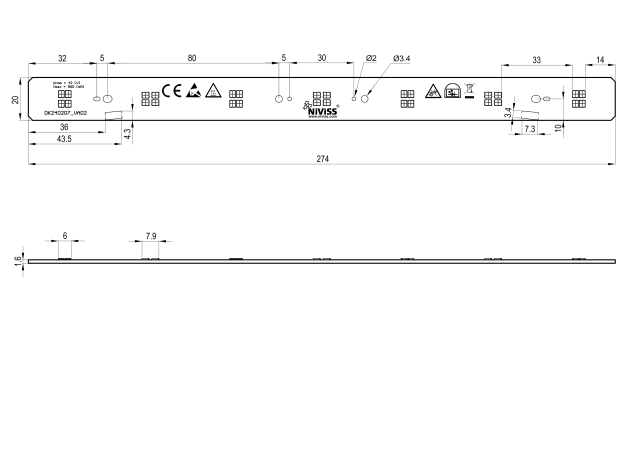

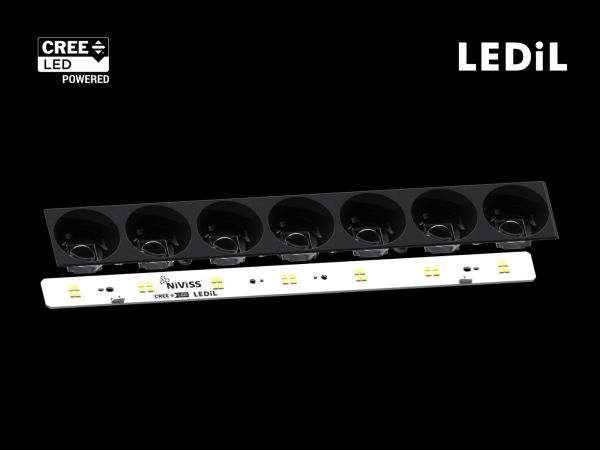

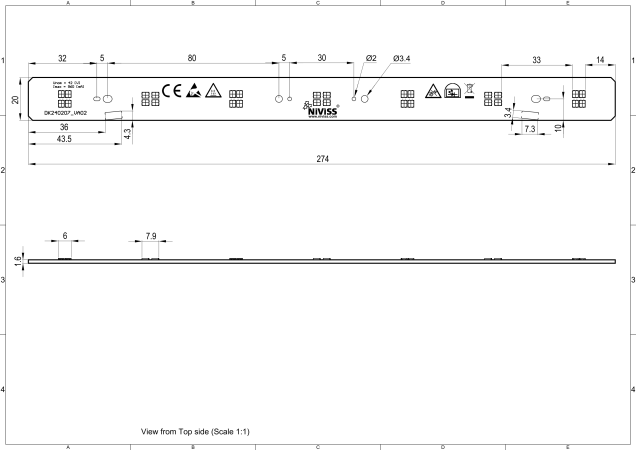

Linear 28 LED 2835 Module 274x20mm - DAISY-7X1

Max efficiency [lm/W]	167 lm/W
Voltage [Vf]	42 V
Length [mm]	274 mm
Width [mm]	20 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	MCPCB
Compatible optics	Daisy-7X1

Allowed variants: 14

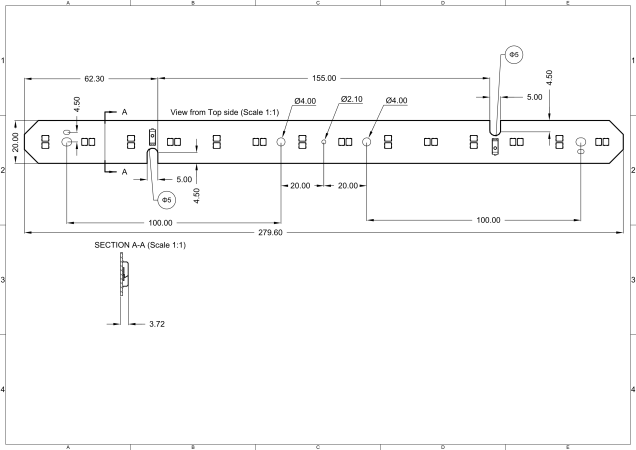

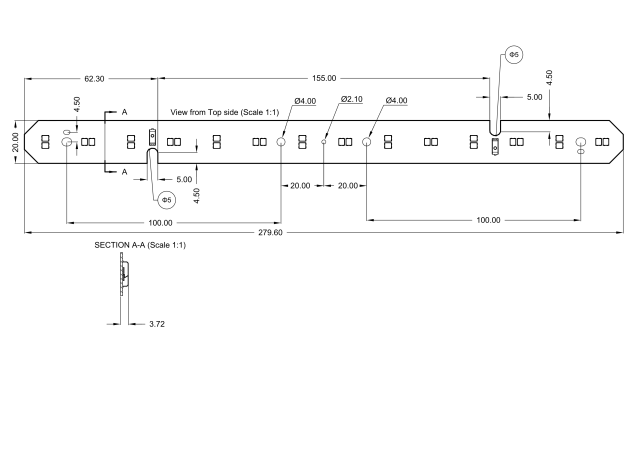

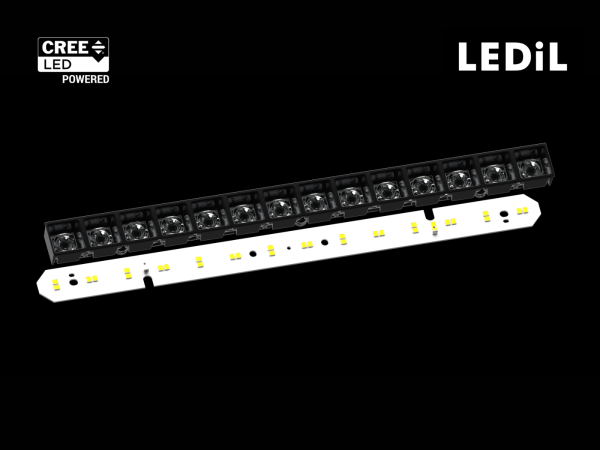

Linear 28 LED 2835 Module 280x20mm - DAISY-MINI-14X1

Max efficiency [lm/W]	188 lm/W
Voltage [Vf]	42 V
Length [mm]	280 mm
Width [mm]	20 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	FR4
Compatible optics	Daisy mini

Allowed variants: 14

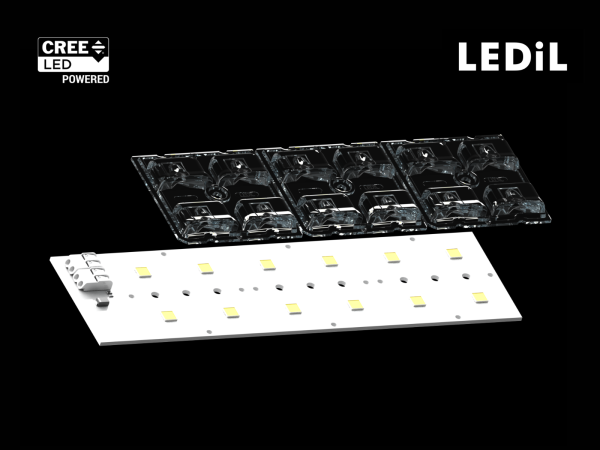

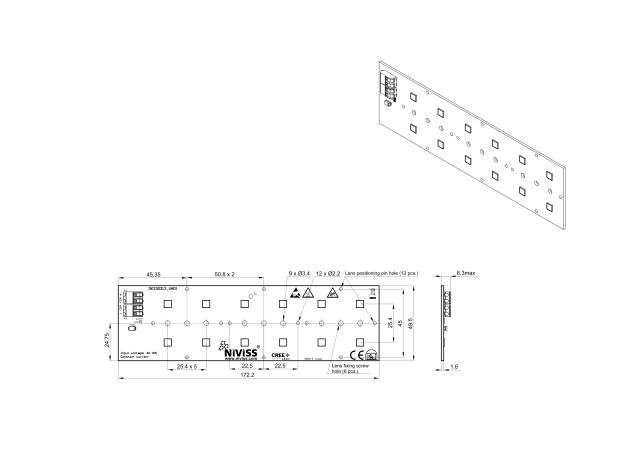

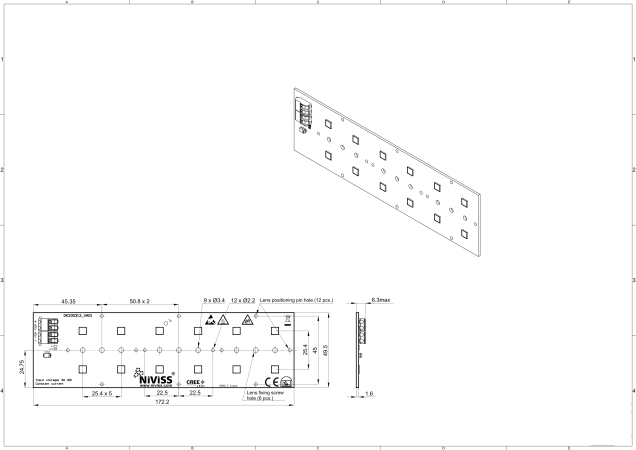

Rectangular 12 LED 5050 Module 172x50mm - 2X2

Max efficiency [lm/W]	225 lm/W
Voltage [Vf]	36 V
Length [mm]	172.2 mm
Width [mm]	49.5 mm
Color temp [K]	2700-6500K
CRI/RA	70/80
PCB Material	MCPCB
Compatible optics	2x2

Allowed variants: 14

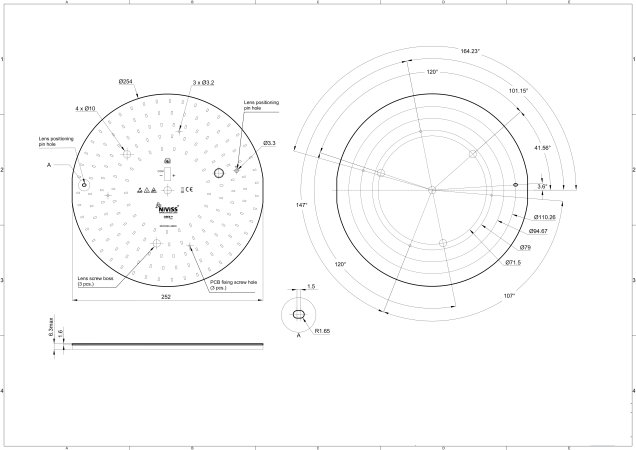

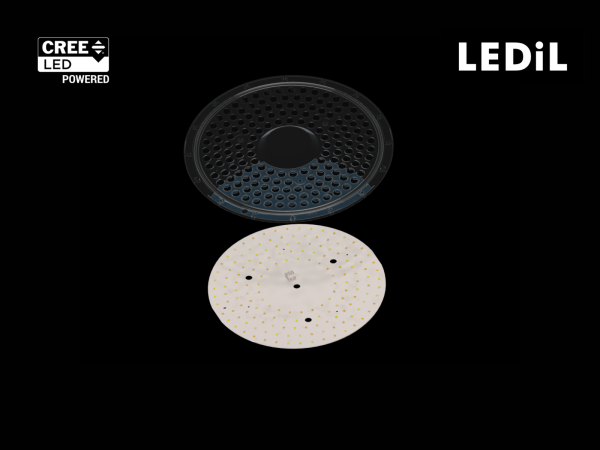

Round 160 LED 2835 Module 252mm - VICTORIA

Max efficiency [lm/W]	205 lm/W
Voltage [Vf]	42,4 V
Length [mm]	252 mm
Width [mm]	252 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	MCPCB
Compatible optics	Victoria

Allowed variants: 14

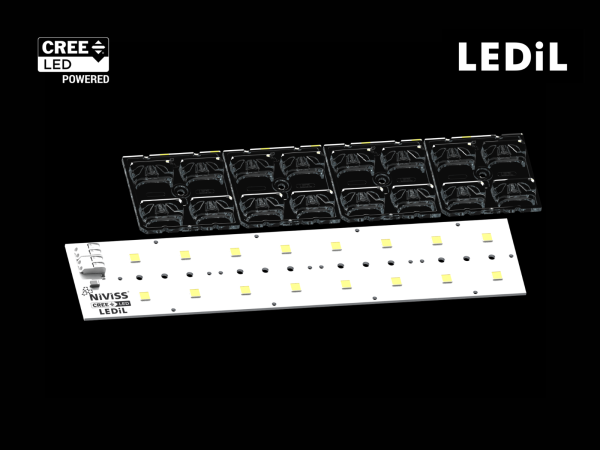

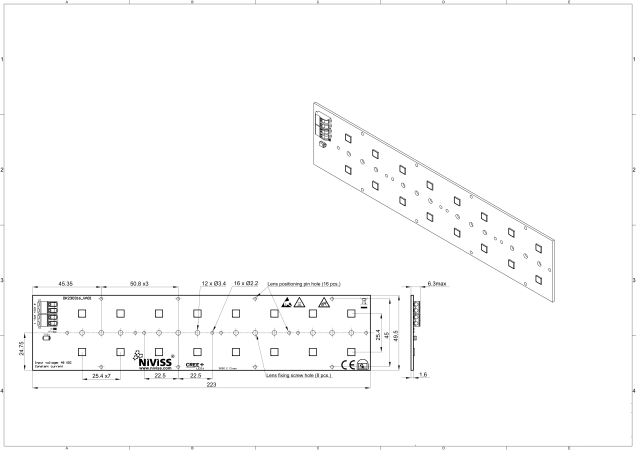

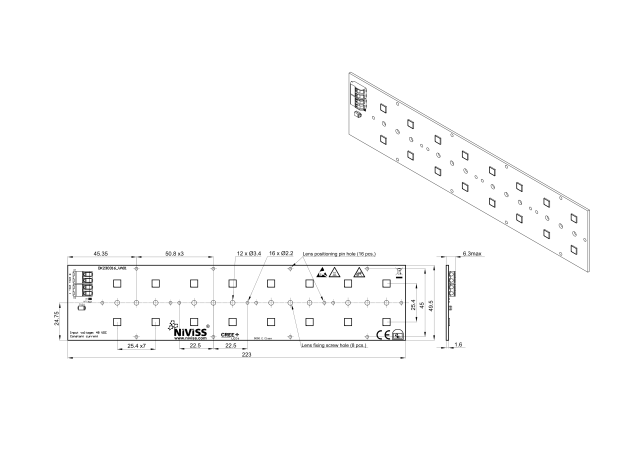

Rectangular 16 LED 5050 Module 172x50mm - 2X2

Max efficiency [lm/W]	225 lm/W
Voltage [Vf]	48 V
Length [mm]	223 mm
Width [mm]	49.5 mm
Color temp [K]	2700-6500K
CRI/RA	70/80
PCB Material	MCPCB
Compatible optics	2x2

Allowed variants: 14

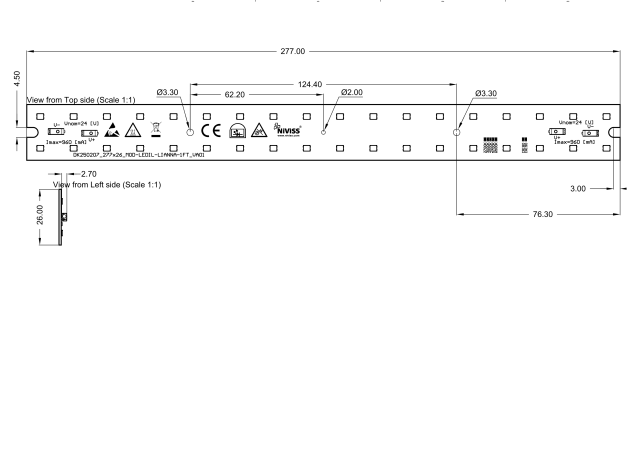

Linear 2x18 LED 2835 Module 277x26mm - LIANNA

Max efficiency [lm/W]	212 lm/W
Voltage [Vf]	24 V
Length [mm]	277 mm
Width [mm]	26 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	MCPCB
Compatible optics	Lianna

Allowed variants: 14

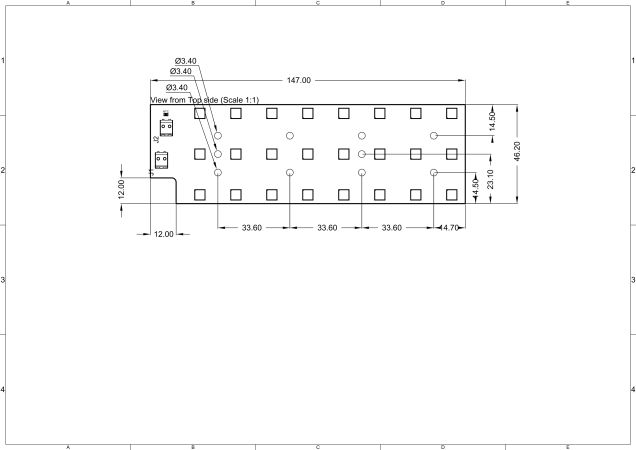

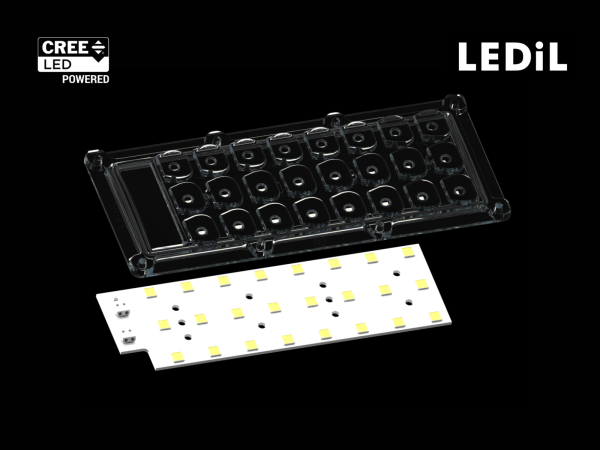

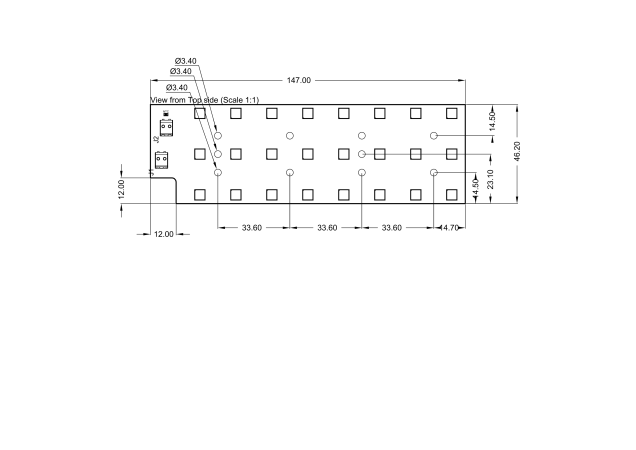

Rectangular 2x12 LED 5050-E Module 147x46mm 68V - IP-24

Max efficiency [lm/W]	214 lm/W
Voltage [Vf]	72 V
Length [mm]	147 mm
Width [mm]	46.2 mm
Color temp [K]	2700-6500K
CRI/RA	70/80
PCB Material	MCPCB
Compatible optics	IP-24

Allowed variants: 14

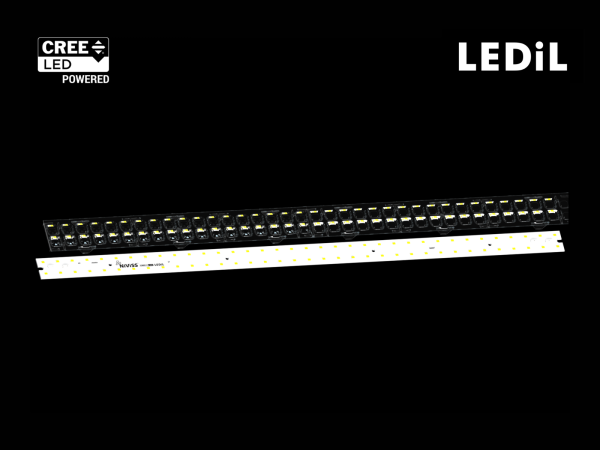

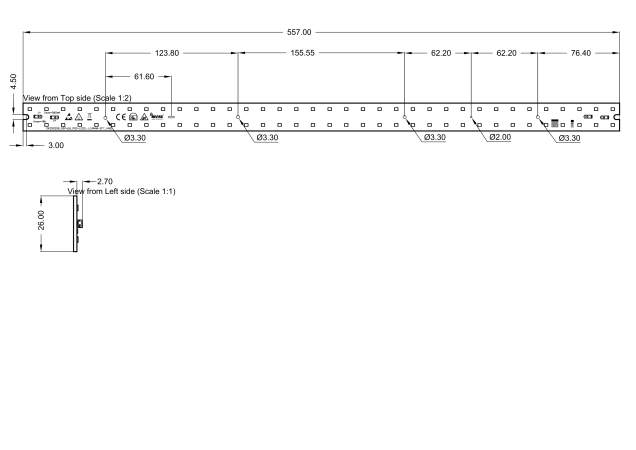

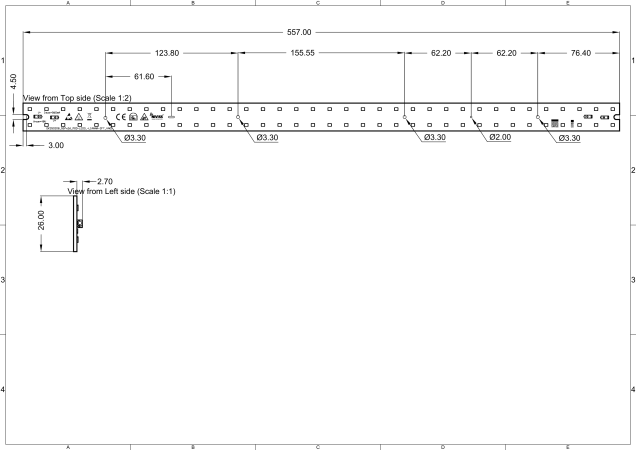

Linear 2x36 LED 2835-J Module 557x26mm - LIANNA

Max efficiency [lm/W]	205 lm/W
Voltage [Vf]	48 V
Length [mm]	557 mm
Width [mm]	26 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	MCPCB
Compatible optics	Lianna

Allowed variants: 14

Linear 2x36 LED 2835-G Module 577x26mm - LIANNA

Max efficiency [lm/W]	219 lm/W
Voltage [Vf]	48 V
Length [mm]	557 mm
Width [mm]	26 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	MCPCB
Compatible optics	Lianna

Allowed variants: 14

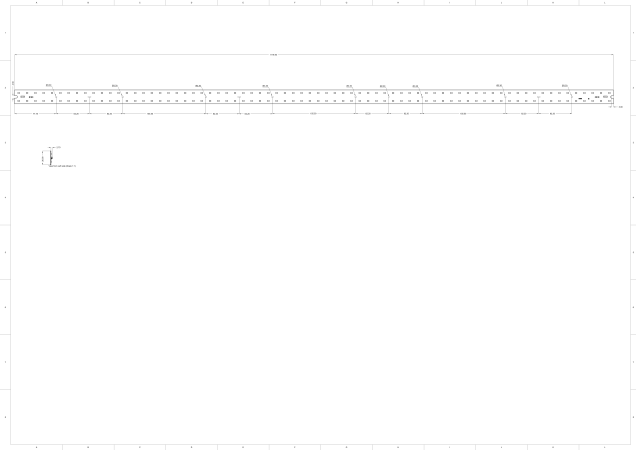

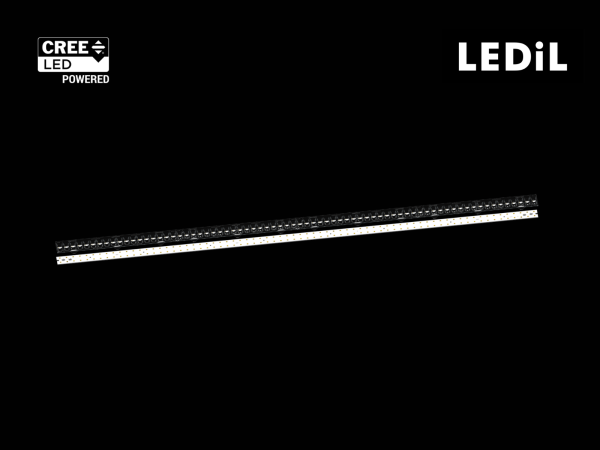

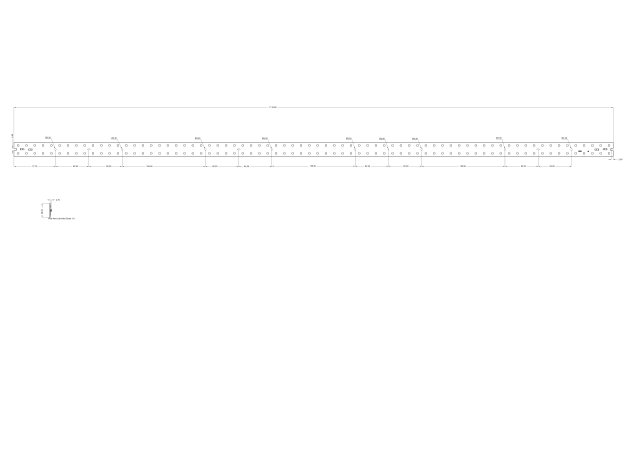

Linear 2X72 LED 2835-J Module 1119x26mm - LIANNA

Max efficiency [lm/W]	206 lm/W
Voltage [Vf]	96 V
Length [mm]	1119 mm
Width [mm]	26 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	MCPCB
Compatible optics	Lianna

Allowed variants: 14

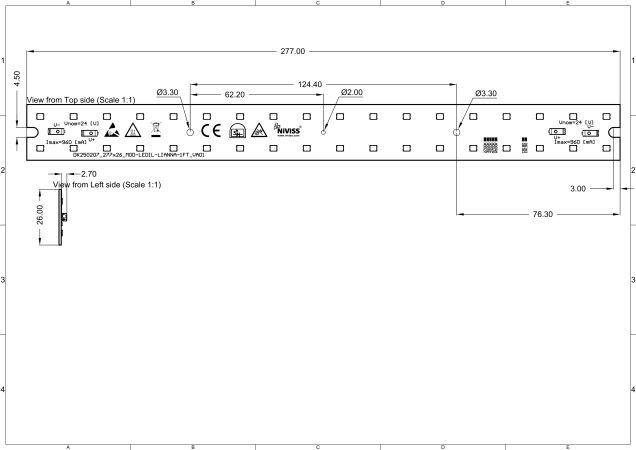

Linear 2X18 LED 2835-J Module 277mmx26mm - LIANNA

Max efficiency [lm/W]	205 lm/W
Voltage [Vf]	24 V
Length [mm]	277 mm
Width [mm]	26 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	MCPCB
Compatible optics	Lianna

Allowed variants: 14

Linear 2X72 LED 2835-J Module 1119x26mm - LIANNA

Max efficiency [lm/W]	219 lm/W
Voltage [Vf]	96 V
Length [mm]	1119 mm
Width [mm]	26 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	MCPCB
Compatible optics	Lianna

Allowed variants: 14

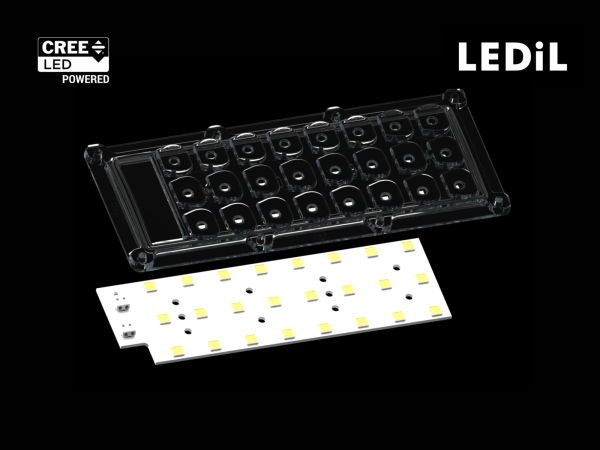

Rectangular 2x12 LED 5050-E Module 147x46mm 45V - IP-24

Max efficiency [lm/W]	207 lm/W
Voltage [Vf]	45 V
Length [mm]	147 mm
Width [mm]	46.2 mm
Color temp [K]	2200-6500K
CRI/RA	70/80
PCB Material	MCPCB
Compatible optics	IP-24

Allowed variants: 16

Rectangular 2x12 LED 5050-E Module 147x46mm 68V - IP-24

Max efficiency [lm/W]	207 lm/W
Voltage [Vf]	72 V
Length [mm]	147 mm
Width [mm]	46.2 mm
Color temp [K]	2200-6500K
CRI/RA	70/80
PCB Material	MCPCB
Compatible optics	IP-24

Allowed variants: 16

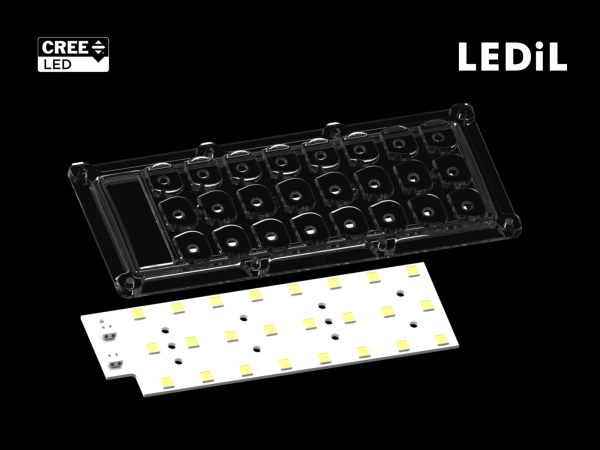

Rectangular 2x12 LED 5050-K Module 147x46mm 45V - IP-24

Max efficiency [lm/W]	193 lm/W
Voltage [Vf]	45,4 V
Length [mm]	147 mm
Width [mm]	46.2 mm
Color temp [K]	2700-6500K
CRI/RA	70/80
PCB Material	MCPCB
Compatible optics	IP-24

Allowed variants: 14

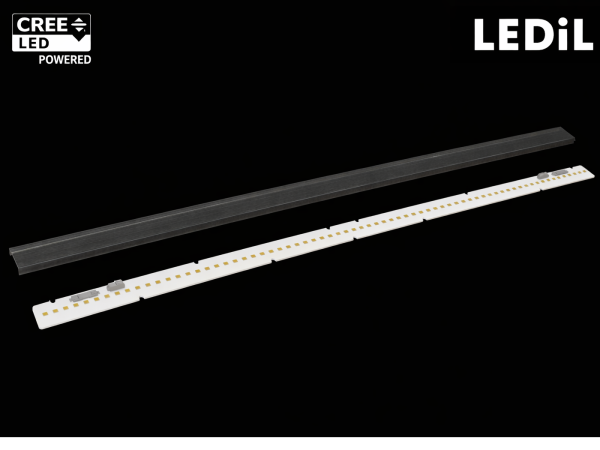

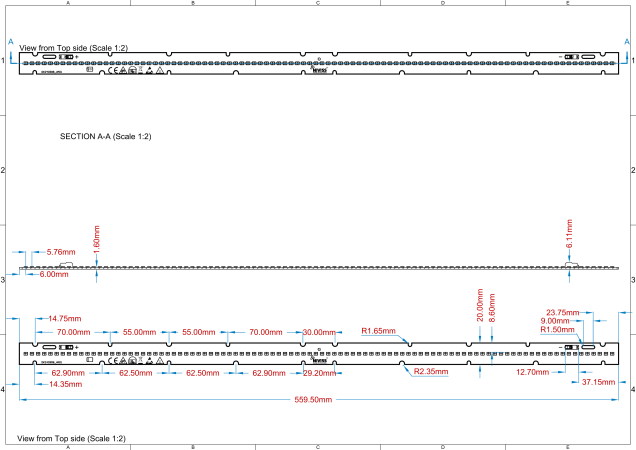

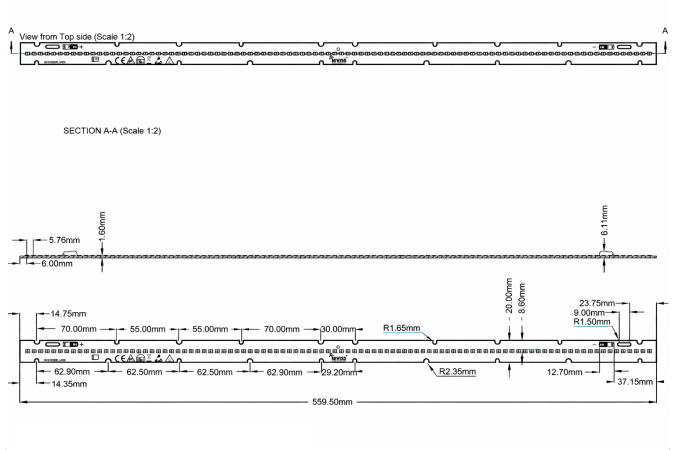

Linear 96 LED 2835 Module 2 feet 560x20mm 90V - LINDA

Max efficiency [lm/W]	207 lm/W
Voltage [Vf]	85,7 V
Length [mm]	559.5 mm
Width [mm]	20 mm
Color temp [K]	2200-6500K
CRI/RA	80/90
PCB Material	MCPCB
Compatible optics	Linnea

Allowed variants: 16

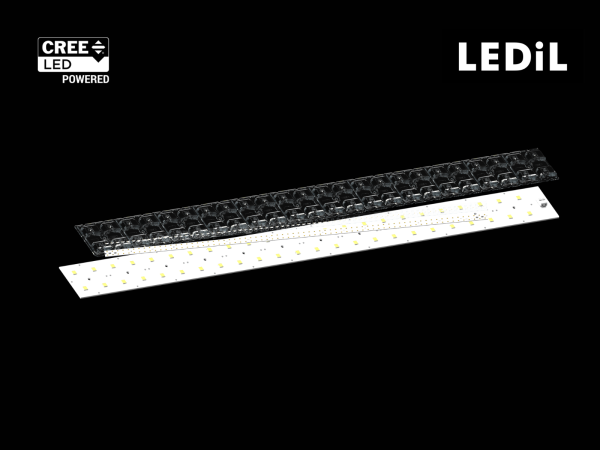

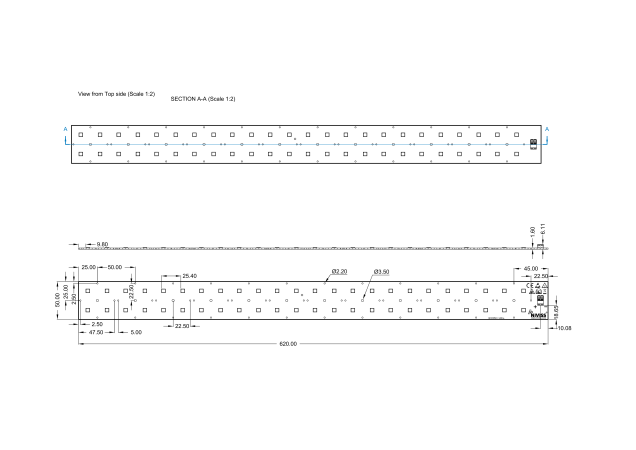

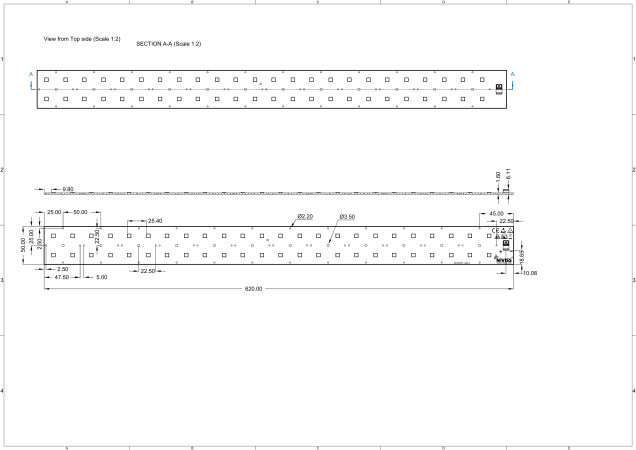

Rectangular 2x24 LED 5050 Module 620x50mm - 2X2

Max efficiency [lm/W]	193 lm/W
Voltage [Vf]	44,8 V
Length [mm]	620 mm
Width [mm]	50 mm
Color temp [K]	2700-6500K
CRI/RA	70/80
PCB Material	MCPCB
Compatible optics	2x2

Allowed variants: 14

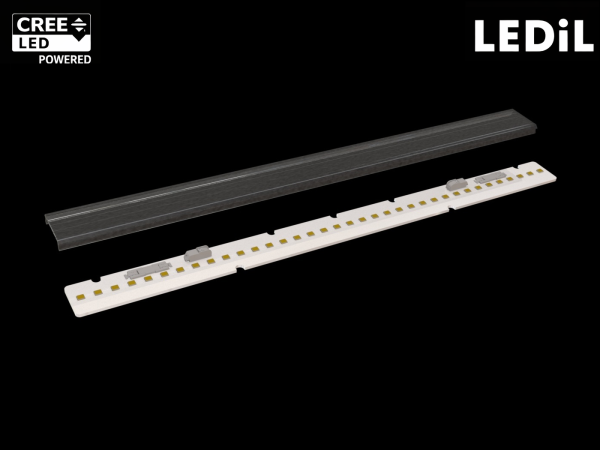

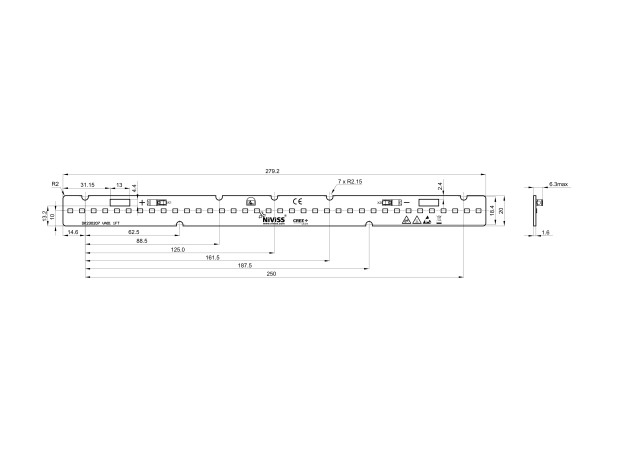

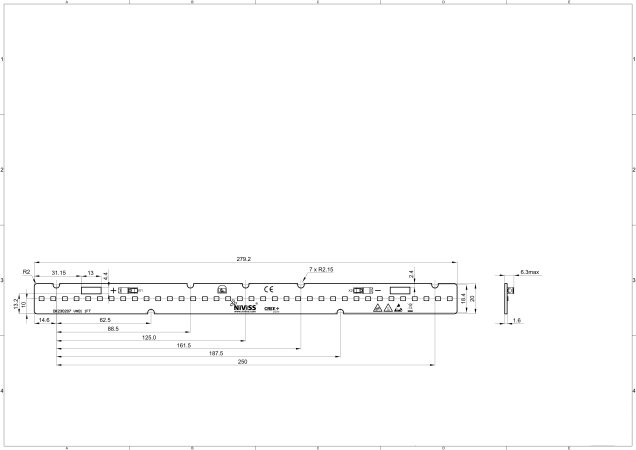

Linear Led Module 1 feet 280x20mm 24V FR4 LINDA

Max efficiency [lm/W]	212 lm/W
Voltage [Vf]	23,8 V
Length [mm]	279.5 mm
Width [mm]	20 mm
Color temp [K]	2200-6500K
CRI/RA	80/90
PCB Material	FR4
Compatible optics	Linnea

Allowed variants: 16

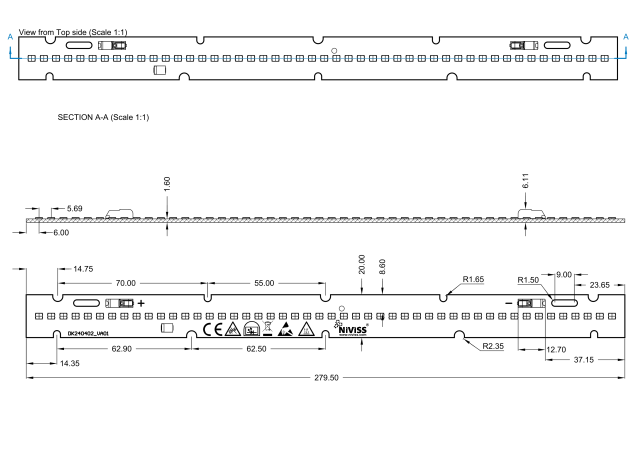

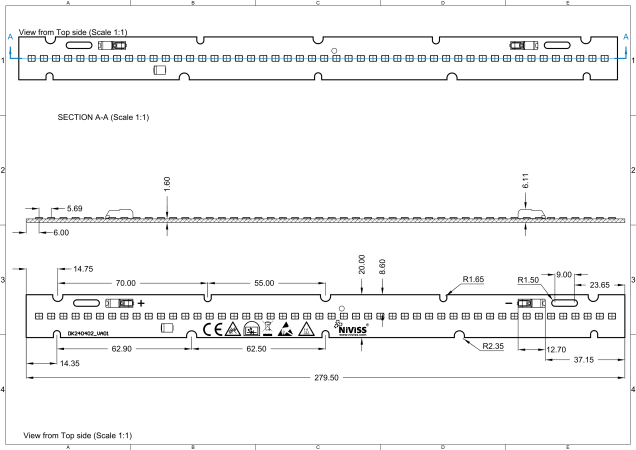

Linear 48 LED 2835 Module 1 feet 280x20mm 48V - LINDA

Max efficiency [lm/W]	207 lm/W
Voltage [Vf]	42,9 V
Length [mm]	279.5 mm
Width [mm]	20 mm
Color temp [K]	2200-6500K
CRI/RA	80/90
PCB Material	MCPCB
Compatible optics	Linnea

Allowed variants: 16

Linear 36 LED 2835 Module 1 feet 280x20mm 24V MCPCB - LINDA

Max efficiency [lm/W]	212 lm/W
Voltage [Vf]	23,8 V
Length [mm]	279.5 mm
Width [mm]	20 mm
Color temp [K]	2200-6500K
CRI/RA	80/90
PCB Material	MCPCB
Compatible optics	Linnea

Allowed variants: 16

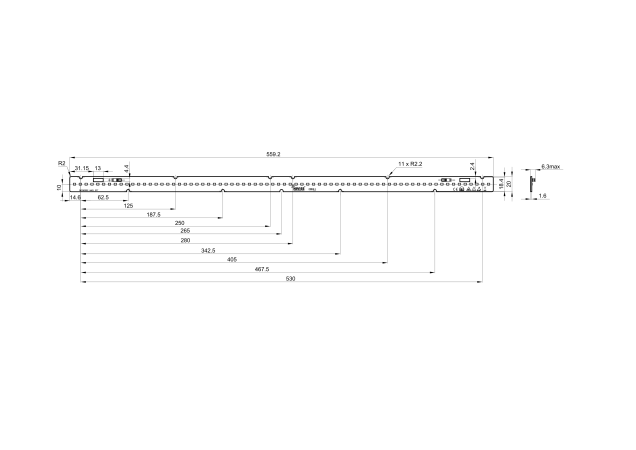

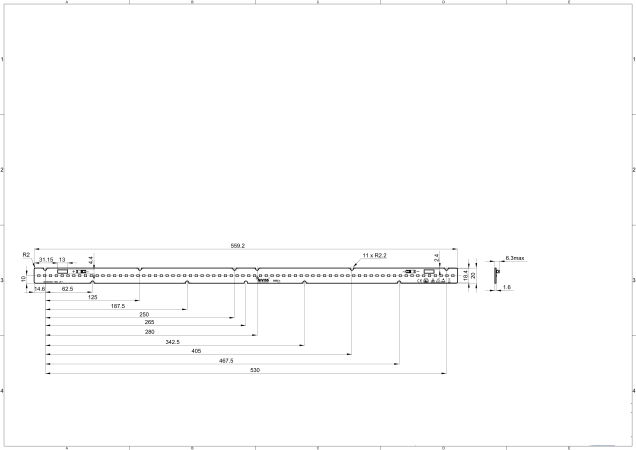

Linear 72 LED 2835 Module 2 feet 560x20mm 48V FR4 - LINDA

Max efficiency [lm/W]	212 lm/W
Voltage [Vf]	47,6 V
Length [mm]	559.5 mm
Width [mm]	20 mm
Color temp [K]	2200-6500K
CRI/RA	80/90
PCB Material	FR4
Compatible optics	Linnea

Allowed variants: 16

Linear 72 LED 2835 Module 2 feet 560x20mm 48V MCPCB - LINDA

Max efficiency [lm/W]	212 lm/W
Voltage [Vf]	47,6 V
Length [mm]	559.5 mm
Width [mm]	20 mm
Color temp [K]	2200-6500K
CRI/RA	80/90
PCB Material	MCPCB
Compatible optics	Linnea

Allowed variants: 16
