Round 160 LED 2835 Module 252mm - VICTORIA
Technical drawings

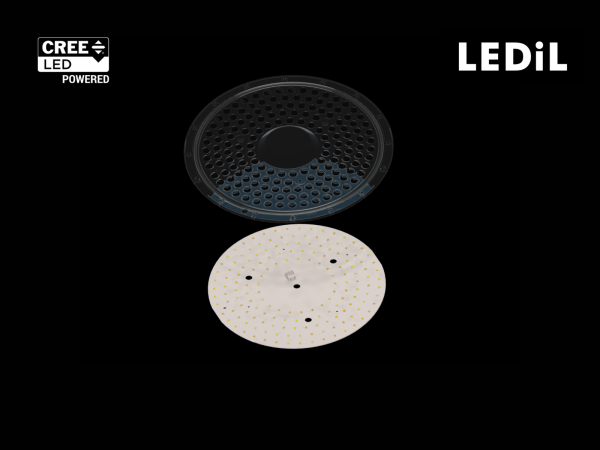

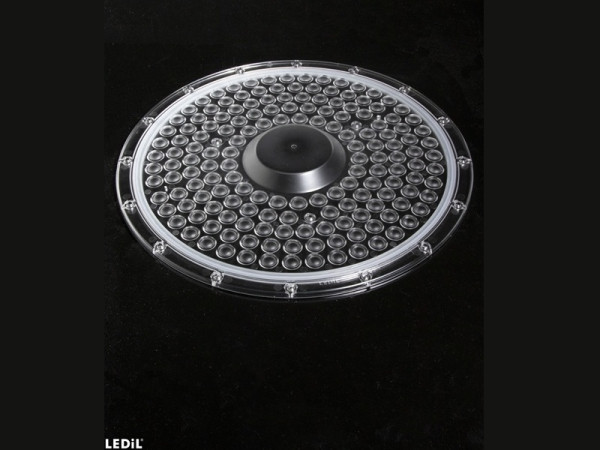

Professional LED module: Round Led Module VICTORIA 254mm. Designed for LEDiL optics and powered by CREE LED diodes (including 2835), ensuring high efficiency, durability, and precise light control.
| Max efficiency [lm/W] | 205 lm/W |
|---|---|
| Voltage [Vf] | 42,4 V |
| Length [mm] | 252 mm |
| Width [mm] | 252 mm |
| Color temp [K] | 2700-6500K |
| CRI/RA | 80/90 |
| PCB Material | MCPCB |
| Compatible optics | Victoria |
Variants
Round 160 LED 2835 Module 252mm - VICTORIA
(14)
| MOD-160R252-JB2835BJ-6580-VA01 | 4776 lm | 6500 K | 80 | 42.4 V | 55 °C |
| MOD-160R252-JB2835BJ-5090-VA01 | 4083 lm | 5000 K | 90 | 42.4 V | 55 °C |
| MOD-160R252-JB2835BJ-5080-VA01 | 4776 lm | 5000 K | 80 | 42.4 V | 55 °C |
| MOD-160R252-JB2835BJ-3080-VA01 | 4483 lm | 3000 K | 80 | 42.4 V | 55 °C |
| MOD-160R252-JB2835BJ-4090-VA01 | 4083 lm | 4000 K | 90 | 42.4 V | 55 °C |
| MOD-160R252-JB2835BJ-5780-VA01 | 4776 lm | 5700 K | 80 | 42.4 V | 55 °C |
| MOD-160R252-JB2835BJ-6590-VA01 | 4083 lm | 6500 K | 90 | 42.4 V | 55 °C |
| MOD-160R252-JB2835BJ-4080-VA01 | 4776 lm | 4000 K | 80 | 42.4 V | 55 °C |
| MOD-160R252-JB2835BJ-5790-VA01 | 4083 lm | 5700 K | 90 | 42.4 V | 55 °C |
| MOD-160R252-JB2835BJ-3580-VA01 | 4637 lm | 3500 K | 80 | 42.4 V | 55 °C |
| MOD-160R252-JB2835BJ-2790-VA01 | 3651 lm | 2700 K | 90 | 42.4 V | 55 °C |
| MOD-160R252-JB2835BJ-3590-VA01 | 3944 lm | 3500 K | 90 | 42.4 V | 55 °C |
14 Variants
