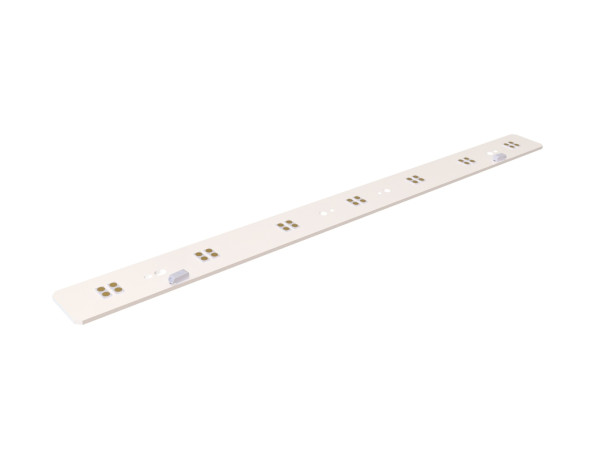

Linear 28 LED 2835 Module 274x20mm - DAISY-7X1
Technical drawings

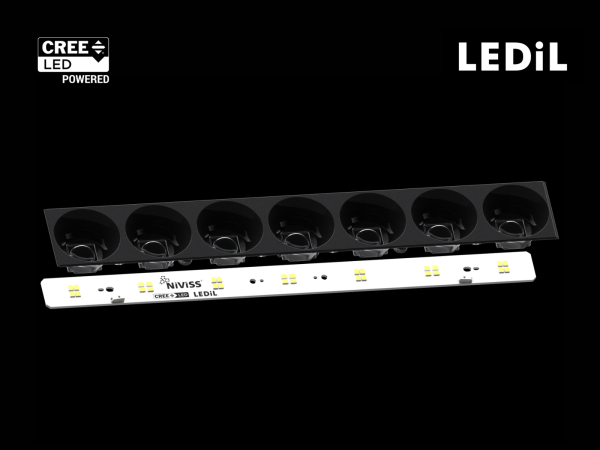

Professional LED module: Linear Led Module DAISY-7X1 2-connectors. Designed for LEDiL optics and powered by CREE LED diodes (including 2835), ensuring high efficiency, durability, and precise light control.
| Max efficiency [lm/W] | 167 lm/W |
|---|---|
| Voltage [Vf] | 42 V |
| Length [mm] | 274 mm |
| Width [mm] | 20 mm |
| Color temp [K] | 2700-6500K |
| CRI/RA | 80/90 |
| PCB Material | MCPCB |

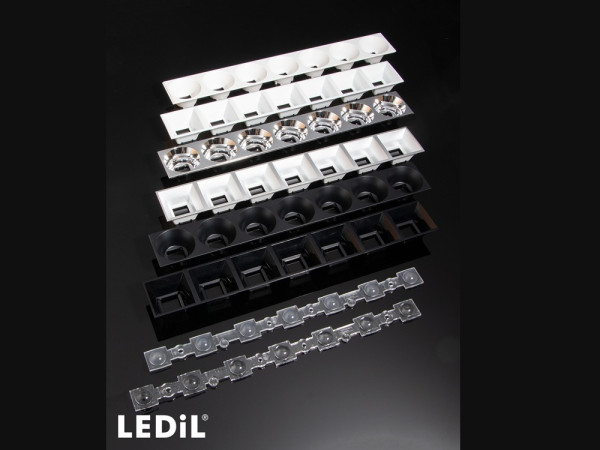

| Compatible optics | Daisy-7X1 |
Variants
Linear 28 LED 2835 Module 274x20mm - DAISY-7X1
(14)
| MOD-28R274x20-JB2835BJ-5090-VA01 | 3282 lm | 5000 K | 90 | 42 V | 55 °C |
| MOD-28R274x20-JB2835BJ-3590-VA01 | 3170 lm | 3500 K | 90 | 42 V | 55 °C |
| MOD-28R274x20-JB2835BJ-2790-VA01 | 2935 lm | 2700 K | 90 | 42 V | 55 °C |
| MOD-28R274x20-JB2835BJ-5780-VA01 | 3839 lm | 5700 K | 80 | 42 V | 55 °C |
| MOD-28R274x20-JB2835BJ-6590-VA01 | 3282 lm | 6500 K | 90 | 42 V | 55 °C |
| MOD-28R274x20-JB2835BJ-6580-VA01 | 3839 lm | 6500 K | 80 | 42 V | 55 °C |
| MOD-28R274x20-JB2835BJ-5080-VA01 | 3839 lm | 5000 K | 80 | 42 V | 55 °C |
| MOD-28R274x20-JB2835BJ-4080-VA01 | 3839 lm | 4000 K | 80 | 42 V | 55 °C |
| MOD-28R274x20-JB2835BJ-3580-VA01 | 3727 lm | 3500 K | 80 | 42 V | 55 °C |
| MOD-28R274x20-JB2835BJ-5790-VA01 | 3282 lm | 5700 K | 90 | 42 V | 55 °C |
| MOD-28R274x20-JB2835BJ-3080-VA01 | 3604 lm | 3000 K | 80 | 42 V | 55 °C |
| MOD-28R274x20-JB2835BJ-4090-VA01 | 3282 lm | 4000 K | 90 | 42 V | 55 °C |
14 Variants
