Rectangular 2x12 LED 5050-K Module 147x46mm 45V - IP-24
Technical drawings

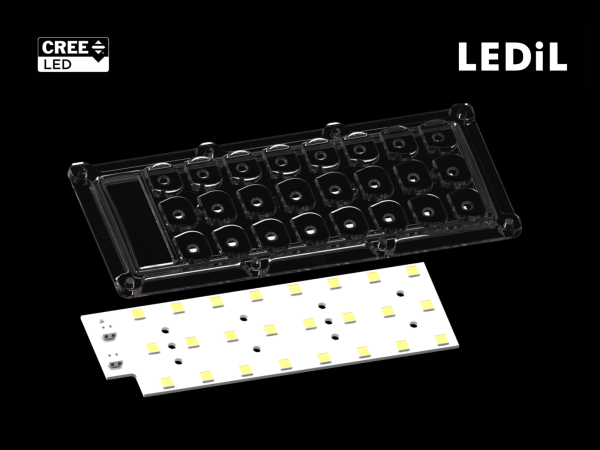

Professional LED module: Module 2x12 LED CREE JR5050 K-class IP-24 45V. Designed for LEDiL optics and powered by CREE LED diodes (including 2835), ensuring high efficiency, durability, and precise light control.
| Max efficiency [lm/W] | 193 lm/W |
|---|---|
| Voltage [Vf] | 45,4 V |
| Length [mm] | 147 mm |
| Width [mm] | 46.2 mm |
| Color temp [K] | 2700-6500K |
| CRI/RA | 70/80 |
| PCB Material | MCPCB |
| Compatible optics | IP-24 |
Variants
Rectangular 2x12 LED 5050-K Module 147x46mm 45V - IP-24
(14)
| MOD-3x8R147X46.2-JR5050K-2770-VA01 | 9421 lm | 2700 K | 70 | 45.4 V | 55 °C |
| MOD-3x8R147X46.2-JR5050K-3080-VA01 | 9238 lm | 3000 K | 80 | 45.4 V | 55 °C |
| MOD-3x8R147X46.2-JR5050K-4070-VA01 | 10405 lm | 4000 K | 70 | 45.4 V | 55 °C |
| MOD-3x8R147X46.2-JR5050K-5080-VA01 | 9719 lm | 5000 K | 80 | 45.4 V | 55 °C |
| MOD-3x8R147X46.2-JR5050K-3580-VA01 | 9490 lm | 3500 K | 80 | 45.4 V | 55 °C |
| MOD-3x8R147X46.2-JR5050K-3570-VA01 | 10062 lm | 3500 K | 70 | 45.4 V | 55 °C |
| MOD-3x8R147X46.2-JR5050K-4080-VA01 | 9719 lm | 4000 K | 80 | 45.4 V | 55 °C |
| MOD-3x8R147X46.2-JR5050K-2780-VA01 | 8895 lm | 2700 K | 80 | 45.4 V | 55 °C |
| MOD-3x8R147X46.2-JR5050K-6570-VA01 | 10405 lm | 6500 K | 70 | 45.4 V | 55 °C |
| MOD-3x8R147X46.2-JR5050K-6580-VA01 | 9719 lm | 6500 K | 80 | 45.4 V | 55 °C |
| MOD-3x8R147X46.2-JR5050K-5070-VA01 | 10405 lm | 5000 K | 70 | 45.4 V | 55 °C |
| MOD-3x8R147X46.2-JR5050K-3070-VA01 | 9902 lm | 3000 K | 70 | 45.4 V | 55 °C |
14 Variants
