Rectangular 12 LED 5050 Module 172x50mm - 2X2
Technical drawings

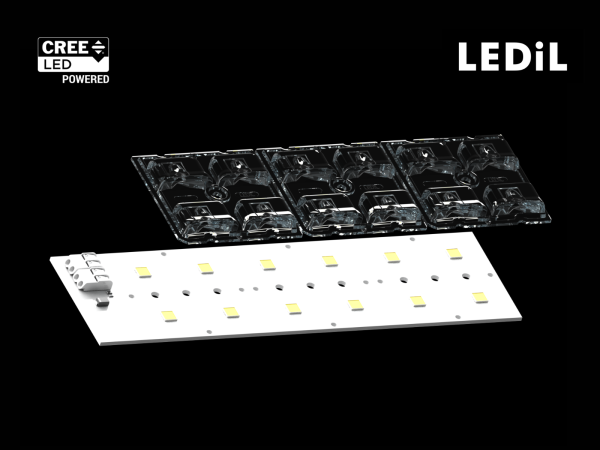

Professional LED module: Module 12 LED 5050 - 2x2. Designed for LEDiL optics and powered by CREE LED diodes (including 2835), ensuring high efficiency, durability, and precise light control.
| Max efficiency [lm/W] | 225 lm/W |
|---|---|
| Voltage [Vf] | 36 V |
| Length [mm] | 172.2 mm |
| Width [mm] | 49.5 mm |
| Color temp [K] | 2700-6500K |
| CRI/RA | 70/80 |
| PCB Material | MCPCB |
| Compatible optics | 2x2 |
Variants
Rectangular 12 LED 5050 Module 172x50mm - 2X2
(14)
| MOD-12R172.2x49.5-JR5050CE-2780-VA01 | 1712 lm | 2700 K | 80 | 36 V | 55 °C |
| MOD-12R172.2x49.5-JR5050CE-6580-VA01 | 1859 lm | 6500 K | 80 | 36 V | 55 °C |
| MOD-12R172.2x49.5-JR5050CE-5070-VA01 | 2015 lm | 5000 K | 70 | 36 V | 55 °C |
| MOD-12R172.2x49.5-JR5050CE-3070-VA01 | 1935 lm | 3000 K | 70 | 36 V | 55 °C |
| MOD-12R172.2x49.5-JR5050CE-4080-VA01 | 1880 lm | 4000 K | 80 | 36 V | 55 °C |
| MOD-12R172.2x49.5-JR5050CE-4070-VA01 | 2015 lm | 4000 K | 70 | 36 V | 55 °C |
| MOD-12R172.2x49.5-JR5050CE-3080-VA01 | 1780 lm | 3000 K | 80 | 36 V | 55 °C |
| MOD-12R172.2x49.5-JR5050CE-5080-VA01 | 1880 lm | 5000 K | 80 | 36 V | 55 °C |
| MOD-12R172.2x49.5-JR5050CE-5770-VA01 | 2015 lm | 5700 K | 70 | 36 V | 55 °C |
| MOD-12R172.2x49.5-JR5050CE-3570-VA01 | 1952 lm | 3500 K | 70 | 36 V | 55 °C |
| MOD-12R172.2x49.5-JR5050CE-3580-VA01 | 1830 lm | 3500 K | 80 | 36 V | 55 °C |
| MOD-12R172.2x49.5-JR5050CE-5780-VA01 | 1880 lm | 5700 K | 80 | 36 V | 55 °C |
14 Variants
