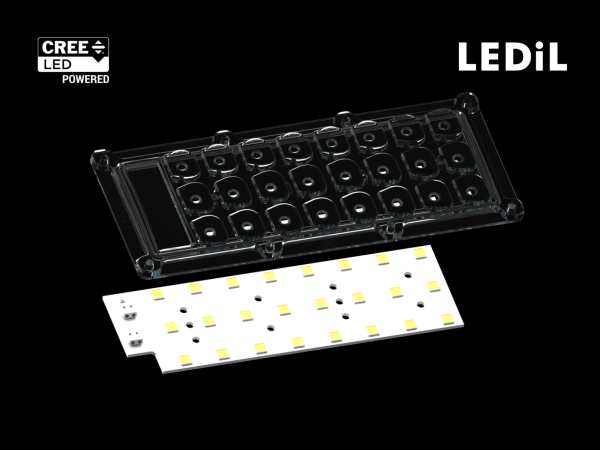

Rectangular 2x12 LED 5050-E Module 147x46mm 68V - IP-24

Rectangular 2x12 LED 5050-E Module 147x46mm 68V - IP-24

Professional LED module: Module 2x12 LED CREE JR5050 K-class - IP-24 68V. Designed for LEDiL optics and powered by CREE LED diodes (including 2835), ensuring high efficiency, durability, and precise light control.

Max efficiency [lm/W]	214 lm/W
Voltage [Vf]	72 V
Length [mm]	147 mm
Width [mm]	46.2 mm
Color temp [K]	2700-6500K
CRI/RA	70/80
PCB Material	MCPCB

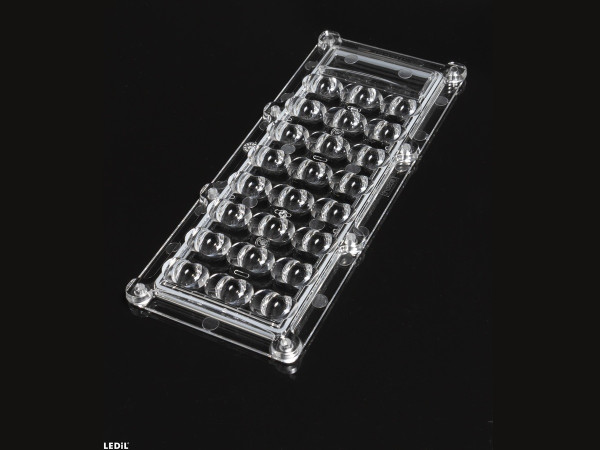

Compatible optics	IP-24

Files to download

Datasheet-general

IP-24-3D.zip

General terms and conditions of guarantee.pdf

DK250402_VA01_3D.step

IP-24.pdf

Variants Rectangular 2x12 LED 5050-E Module 147x46mm 68V - IP-24 (14)


MOD-24R147x46.2-JR5050K-4080-VA01	3569 lm	4000 K	80	72 V	55 °C
MOD-24R147x46.2-JR5050K-3580-VA01	3485 lm	3500 K	80	72 V	55 °C
MOD-24R147x46.2-JR5050K-3070-VA01	3636 lm	3000 K	70	72 V	55 °C
MOD-24R147x46.2-JR5050K-2780-VA01	3267 lm	2700 K	80	72 V	55 °C
MOD-24R147x46.2-JR5050K-5770-VA01	3821 lm	5700 K	70	72 V	55 °C
MOD-24R147x46.2-JR5050K-4070-VA01	3821 lm	4000 K	70	72 V	55 °C
MOD-24R147x46.2-JR5050K-6580-VA01	3569 lm	6500 K	80	72 V	55 °C
MOD-24R147x46.2-JR5050K-5780-VA01	3569 lm	5700 K	80	72 V	55 °C
MOD-24R147x46.2-JR5050K-3570-VA01	3695 lm	3500 K	70	72 V	55 °C
MOD-24R147x46.2-JR5050K-3080-VA01	3393 lm	3000 K	80	72 V	55 °C
MOD-24R147x46.2-JR5050K-2770-VA01	3460 lm	2700 K	70	72 V	55 °C
MOD-24R147x46.2-JR5050K-6570-VA01	3821 lm	6500 K	70	72 V	55 °C

14 Variants
