Rectangular 2x12 LED 5050-E Module 147x46mm 45V - IP-24

Rectangular 2x12 LED 5050-E Module 147x46mm 45V - IP-24

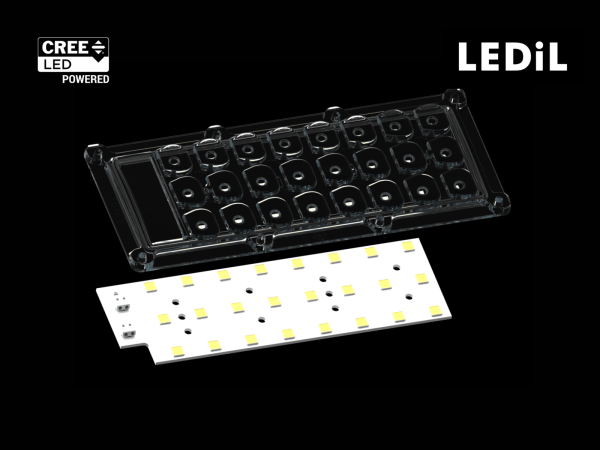

Professional LED module: Module 2x12 LED CREE JR5050 E-class IP-24 45V. Designed for LEDiL optics and powered by CREE LED diodes (including 2835), ensuring high efficiency, durability, and precise light control.

Max efficiency [lm/W]	207 lm/W
Voltage [Vf]	45 V
Length [mm]	147 mm
Width [mm]	46.2 mm
Color temp [K]	2200-6500K
CRI/RA	70/80
PCB Material	MCPCB
Compatible optics	IP-24

Files to download

Datasheet-general

IP-24-3D.zip

General terms and conditions of guarantee.pdf

IP-24.pdf

Variants Rectangular 2x12 LED 5050-E Module 147x46mm 45V - IP-24 (16)


11086 lm	MOD-3x8R147x46.2-JR5050CE-4070-VA01	4000 K	70	45 V	55 °C
9792 lm	MOD-3x8R147x46.2-JR5050CE-3080-VA01	3000 K	80	45 V	55 °C
9423 lm	MOD-3x8R147x46.2-JR5050CE-2780-VA01	2700 K	80	45 V	55 °C
10093 lm	MOD-3x8R147x46.2-JR5050CE-2770-VA01	2700 K	70	45 V	55 °C
8776 lm	MOD-3x8R147x46.2-JR5050CE-2270-VA01	2200 K	70	45 V	55 °C
11086 lm	MOD-3x8R147x46.2-JR5050CE-5770-VA01	5700 K	70	45 V	55 °C
10901 lm	MOD-3x8R147x46.2-JR5050CE-6570-VA01	6500 K	70	45 V	55 °C
10647 lm	MOD-3x8R147x46.2-JR5050CE-3070-VA01	3000 K	70	45 V	55 °C
10231 lm	MOD-3x8R147x46.2-JR5050CE-6580-VA01	6500 K	80	45 V	55 °C
11086 lm	MOD-3x8R147x46.2-JR5050CE-5070-VA01	5000 K	70	45 V	55 °C
10347 lm	MOD-3x8R147x46.2-JR5050CE-4080-VA01	4000 K	80	45 V	55 °C
10347 lm	MOD-3x8R147x46.2-JR5050CE-5080-VA01	5000 K	80	45 V	55 °C

16 Variants
