Rectangular 2x12 LED 5050-E Module 147x46mm 68V - IP-24
Technical drawings

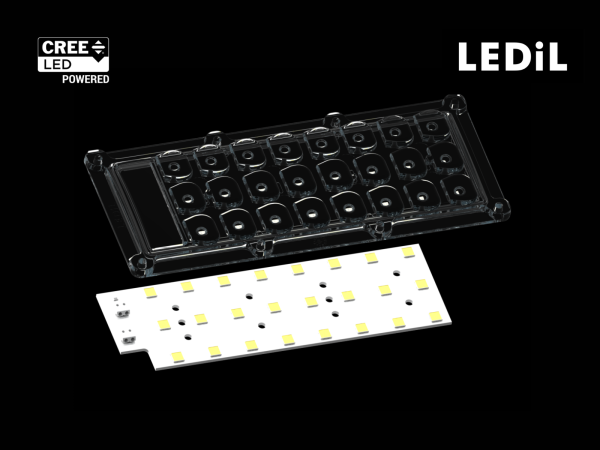

Professional LED module: Module 2x12 LED CREE JR5050 E-class IP-24 68V. Designed for LEDiL optics and powered by CREE LED diodes (including 2835), ensuring high efficiency, durability, and precise light control.
| Max efficiency [lm/W] | 207 lm/W |
|---|---|
| Voltage [Vf] | 72 V |
| Length [mm] | 147 mm |
| Width [mm] | 46.2 mm |
| Color temp [K] | 2200-6500K |
| CRI/RA | 70/80 |
| PCB Material | MCPCB |
| Compatible optics | IP-24 |
Variants
Rectangular 2x12 LED 5050-E Module 147x46mm 68V - IP-24
(16)
| MOD-2x12R147x46.2-JR5050CE-4080-VA01 | 10347 lm | 4000 K | 80 | 72 V | 55 °C |
| MOD-2x12R147x46.2-JR5050CE-2270-VA01 | 8776 lm | 2200 K | 70 | 72 V | 55 °C |
| MOD-2x12R147x46.2-JR5050CE-3070-VA01 | 10647 lm | 3000 K | 70 | 72 V | 55 °C |
| MOD-2x12R147x46.2-JR5050CE-3080-VA01 | 9792 lm | 3000 K | 80 | 72 V | 55 °C |
| MOD-2x12R147x46.2-JR5050CE-5770-VA01 | 11086 lm | 5700 K | 70 | 72 V | 55 °C |
| MOD-2x12R147x46.2-JR5050CE-2770-VA01 | 10093 lm | 2700 K | 70 | 72 V | 55 °C |
| MOD-2x12R147x46.2-JR5050CE-3580-VA01 | 10069 lm | 3500 K | 80 | 72 V | 55 °C |
| MOD-2x12R147x46.2-JR5050CE-4070-VA01 | 11086 lm | 4000 K | 70 | 72 V | 55 °C |
| MOD-2x12R147x46.2-JR5050CE-5080-VA01 | 10347 lm | 5000 K | 80 | 72 V | 55 °C |
| MOD-2x12R147x46.2-JR5050CE-5070-VA01 | 11086 lm | 5000 K | 70 | 72 V | 55 °C |
| MOD-2x12R147x46.2-JR5050CE-6580-VA01 | 10231 lm | 6500 K | 80 | 72 V | 55 °C |
| MOD-2x12R147x46.2-JR5050CE-2780-VA01 | 9423 lm | 2700 K | 80 | 72 V | 55 °C |
16 Variants
