POOL MICRO SLIM 12V/24V DC

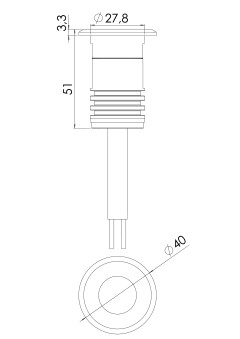

Technical drawings
The Niviss Pool Micro Slim, with a maximum power of 2W, has been designed using state-of-the-art simulation methods to ensure superior sealing and provide years of trouble-free operation. The Pool Micro Slim Series fixtures are made of the highest quality 316L stainless steel, and the light source is LEDs from American company CREE. Some of the possible applications are: swimming pools, ponds, fountains, wharves.
| Housing | SS316L |
|---|---|
| Glass type | Tempered |
| Light source | LED |
| Luminous flux tolerance | 10% |
| SDCM colour tolerance | <3 |
| Light distribution / Emission | symmetrical |
| IP protection class | IP68 |
| Impact resistance | IK10 |
| Working temperature range | -20°C ÷ +55°C |
| Lifetime L80B10 | ≥ 60 000h |
| Protection class | III |
| Wiring | SIHF 2X1.5 |
| Connection | 1,5m |
| Dimming | ON-OFFDALI |
| Power supplies | apart from the luminaireordered separately |
| Angle of distribution | 17˚, 31˚,39˚ |
| Rated power [W] | 2 |
| Nominal voltage [V] | 12V/24V DC |
| Lumen output [lm] | 215 |
| Colour rendering index (CRI) | ≥80 |
Variants
POOL MICRO SLIM 12V/24V DC
(15)
| POOL-MICRO-SLIM-2-AW-17-RD-SS-LV-R | 2 | 140 | 12V-24V DC | 2200 | ≥80 | 17 | SS316L | SST | 5905658702427 |  |
| POOL-MICRO-SLIM-2-AW-31-RD-SS-LV-R | 2 | 140 | 12V-24V DC | 2200 | ≥80 | 31 | SS316L | SST | 5905658702434 | |
| POOL-MICRO-SLIM-2-AW-39-RD-SS-LV-R | 2 | 140 | 12V-24V DC | 2200 | ≥80 | 39 | SS316L | SST | 5905658702441 | |
| POOL-MICRO-SLIM-2-CW-17-RD-SS-LV-R | 2 | 205 | 12V-24V DC | 5000 | ≥80 | 17 | SS316L | SST | 5905658702540 | |
| POOL-MICRO-SLIM-2-CW-31-RD-SS-LV-R | 2 | 205 | 12V-24V DC | 5000 | ≥80 | 31 | SS316L | SST | 5905658702557 | |
| POOL-MICRO-SLIM-2-CW-39-RD-SS-LV-R | 2 | 205 | 12V-24V DC | 5000 | ≥80 | 39 | SS316L | SST | 5905658702564 | |
| POOL-MICRO-SLIM-2-NW-17-RD-SS-LV-R | 2 | 195 | 12V-24V DC | 4000 | ≥80 | 17 | SS316L | SST | 5905658702519 | |
| POOL-MICRO-SLIM-2-NW-31-RD-SS-LV-R | 2 | 195 | 12V-24V DC | 4000 | ≥80 | 31 | SS316L | SST | 5905658702526 | |
| POOL-MICRO-SLIM-2-NW-39-RD-SS-LV-R | 2 | 195 | 12V-24V DC | 4000 | ≥80 | 39 | SS316L | SST | 5905658702533 | |
| POOL-MICRO-SLIM-2-VW-17-RD-SS-LV-R | 2 | 170 | 12V-24V DC | 2700 | ≥80 | 17 | SS316L | SST | 5905658702458 | |
| POOL-MICRO-SLIM-2-VW-31-RD-SS-LV-R | 2 | 170 | 12V-24V DC | 2700 | ≥80 | 31 | SS316L | SST | 5905658702465 | |
| POOL-MICRO-SLIM-2-VW-39-RD-SS-LV-R | 2 | 170 | 12V-24V DC | 2700 | ≥80 | 39 | SS316L | SST | 5905658702472 | |
15 Variants
