POOL MEDIUM TITANIUM 12V/24V DC
Technical drawings

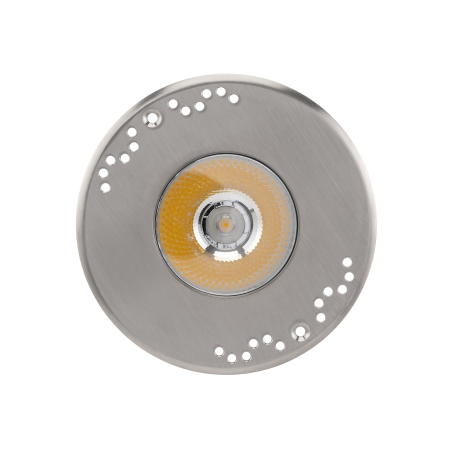

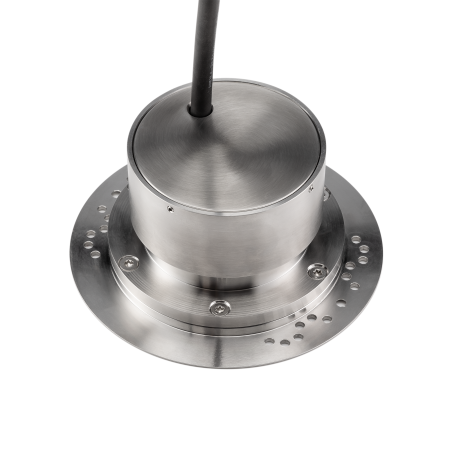

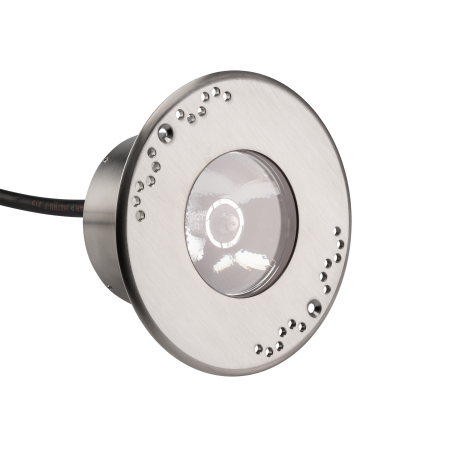

Niviss Pool Medium Titanium with a maximum power of 18W was designed with passion using modern technologies The lamp is made of stainless steel and titanium alloy for the best possible protection against corrosion, and the light source is LEDs from the American company CREE. The shallow mounting depth allows you to use this lamp in any location, such as pools, ponds, fountains, plazas, gardens, wharves.
| Housing | SS316Ti |
|---|---|
| Glass type | Tempered |
| Light source | LED |
| Luminous flux tolerance | 10% |
| SDCM colour tolerance | <3 |
| Light distribution / Emission | symmetrical |
| IP protection class | IP68 |
| Impact resistance | IK10 |
| Working temperature range | -20°C ÷ +55°C |
| Lifetime L80B10 | ≥ 60 000h |
| Protection class | III |
| Wiring | SIHF 2X1.5 |
| Connection | 5m |
| Dimming | PWM, ON-OFF |
| Power supplies | apart from the luminaireordered separately |
| Angle of distribution | 10˚, 20˚,30˚ |
| Rated power [W] | 18 |
| Nominal voltage [V] | 12V/24V DC |
| Lumen output [lm] | 1500 |
| Colour rendering index (CRI) | ≥80 |
Variants
POOL MEDIUM TITANIUM 12V/24V DC
(12)
| POOL-MEDIUM-18-CW-10-RD-TS-LV-COB-R | 18 | 1660 | 12V-24V DC | 5000 | ≥80 | 10 | Titanium | SST | 5905658703097 |  |
| POOL-MEDIUM-18-CW-20-RD-TS-LV-COB-R | 18 | 1660 | 12V-24V DC | 5000 | ≥80 | 20 | Titanium | SST | 5905658703103 | |
| POOL-MEDIUM-18-CW-30-RD-TS-LV-COB-R | 18 | 1660 | 12V-24V DC | 5000 | ≥80 | 30 | Titanium | SST | 5905658703110 | |
| POOL-MEDIUM-18-NW-10-RD-TS-LV-COB-R | 18 | 1660 | 12V-24V DC | 4000 | ≥80 | 10 | Titanium | SST | 5905658703066 | |
| POOL-MEDIUM-18-NW-20-RD-TS-LV-COB-R | 18 | 1660 | 12V-24V DC | 4000 | ≥80 | 20 | Titanium | SST | 5905658703073 | |
| POOL-MEDIUM-18-NW-30-RD-TS-LV-COB-R | 18 | 1660 | 12V-24V DC | 4000 | ≥80 | 30 | Titanium | SST | 5905658703080 | |
| POOL-MEDIUM-18-VW-10-RD-TS-LV-COB-R | 18 | 1500 | 12V-24V DC | 2700 | ≥80 | 10 | Titanium | SST | 5905658703004 | |
| POOL-MEDIUM-18-VW-20-RD-TS-LV-COB-R | 18 | 1500 | 12V-24V DC | 2700 | ≥80 | 20 | Titanium | SST | 5905658703011 | |
| POOL-MEDIUM-18-VW-30-RD-TS-LV-COB-R | 18 | 1500 | 12V-24V DC | 2700 | ≥80 | 30 | Titanium | SST | 5905658703028 | |
| POOL-MEDIUM-18-WW-10-RD-TS-LV-COB-R | 18 | 1500 | 12V-24V DC | 3000 | ≥80 | 10 | Titanium | SST | 5905658703035 | |
| POOL-MEDIUM-18-WW-20-RD-TS-LV-COB-R | 18 | 1500 | 12V-24V DC | 3000 | ≥80 | 20 | Titanium | SST | 5905658703042 | |
| POOL-MEDIUM-18-WW-30-RD-TS-LV-COB-R | 18 | 1500 | 12V-24V DC | 3000 | ≥80 | 30 | Titanium | SST | 5905658703059 | |
12 Variants
