nLINEAR 12V/24V DC
Technical drawings

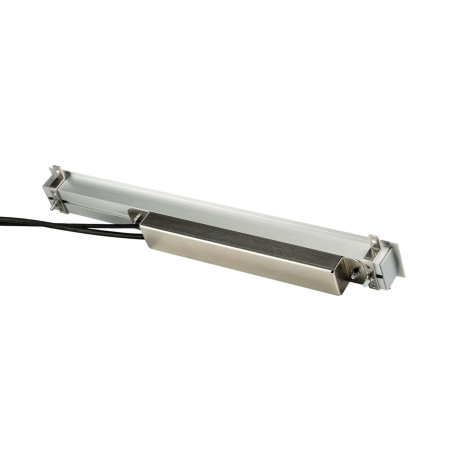

The lamp nLinear RGW is based on LED technology. The lamp is designed to lighting the entrance and to signal the opening and closing in door of the train. The white side light is turn on all the time and the his objective is lighting the entrance of the train. The middle of the lighting the turn on alternately depending on the need. When the door is closed and the train is a motion, the white side light is lighting all time. When the door is opening the white side light will change colour white to green light, when the door is closing the light side change colour a red light.
| Housing | Aluminum |
|---|---|
| Rated power [W] | 32 |
| Nominal voltage [V] | 12V/24V DC |
| Light source | LED |
| Luminous flux tolerance | ±10% |
| Colour rendering index (CRI) | ≥80 |
| SDCM colour tolerance | <3 |
| Light distribution | symmetrical |
| IP protection class | IP65 |
| Impact resistance | IK08 |
| Working temperature range | -20˚C ÷ +55˚C |
| Lifetime L80B10 | ≥ 40 000h |
| Protection class | III |
| Wiring | AZ HXOE 2x0.75. |
| Connection | 0.5m |
| Dimming | ON-OFF |
| Light emission | direct |
