NGROUND STANDARD 220-240V AC 50/60Hz
Technical drawings

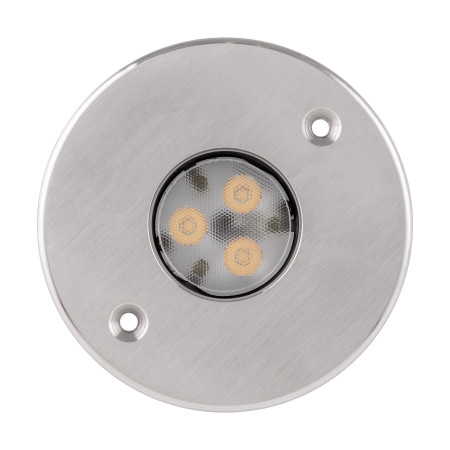

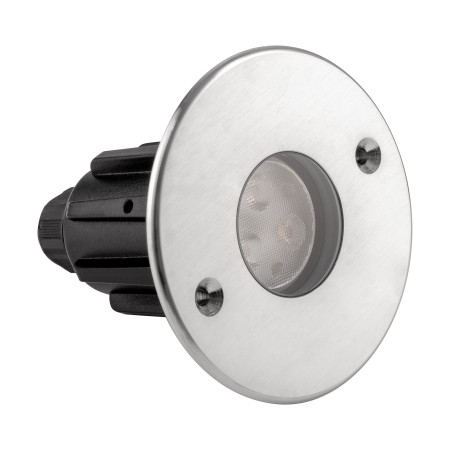

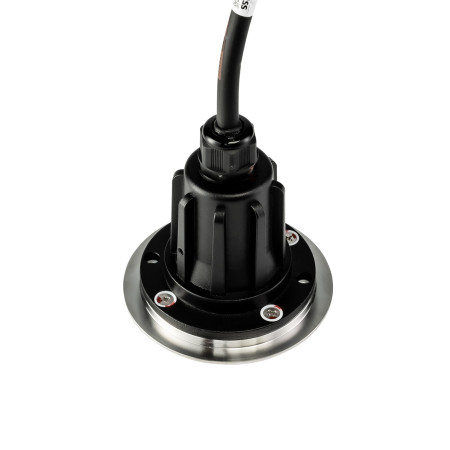

The NIVISS NGROUND STANDARD Slim is an outdoor ground luminaire crafted for durability and refined design. Based on CREE LED's With an IP67 rating, it offers full protection against dust and water, ensuring reliable operation even in demanding environments, an SS316L stainless steel front combined with an aluminium body for a lightweight, cost-effective solution with excellent thermal performance. Thanks to its high-quality materials and precise engineering, the NIVISS NGROUND STANDARD delivers long-lasting reliability while adding a sleek architectural accent to pathways, terraces, gardens, driveways, and public spaces.
Housing | SS316LAluminum |
---|---|
Glass type | Tempered |
Working temperature range | -20˚C ÷ +55˚C |
IP protection class | IP67 |
Lifetime L80B10 | ≥ 60 000h |
Impact resistance | IK10 |
Protection class | I |
Connection | 0.5m |
Wiring | H07RN-F 3G1 |
Dimming | ON-OFF |
Light emission | direct |
Colour rendering index | ≥80 |
SDCM colour tolerance | <3 |
Luminous flux tolerance | ±10% |
Power supplies | inside the luminaire |
Light distribution | symmetrical |
Nominal voltage [V] | 220-240V AC 50/60Hz |
Rated power [W] | 5 |
Light source | LED |
Angle of distribution | 25˚, 45˚ |
