Ground Standard Slim 12V/24V DC
GROUND STANDARD SLIM 12V/24V DC

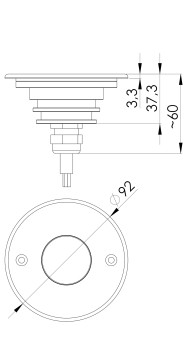

Technical drawings
The NIVISS GROUND STANDARD Slim is an outdoor ground luminaire crafted for durability and refined design. Based on CREE LED's With an IP67 rating, it offers full protection against dust and water, ensuring reliable operation even in demanding environments. It can be manufactured entirely from SS316L stainless steel for maximum resistance to corrosion and harsh weather, or with an SS316L stainless steel front combined with an aluminium body for a lightweight, cost-effective solution with excellent thermal performance. Thanks to its high-quality materials and precise engineering, the NIVISS GROUND STANDARD delivers long-lasting reliability while adding a sleek architectural accent to pathways, terraces, gardens, driveways, and public spaces.
| Housing | AluminumSS316l |
|---|---|
| Glass type | Tempered |
| Light source | LED |
| Luminous flux tolerance | ±10% |
| SDCM colour tolerance | <3 |
| Light distribution | symmetrical |
| IP protection class | IP67 |
| Impact resistance | IK10 |
| Working temperature range | -20˚C ÷ +55˚C |
| Lifetime L80B10 | ≥ 60 000h |
| Protection class | III |
| Wiring | H07RN-F 2X1.5 |
| Connection | 0.5m |
| Dimming | ON-OFF/PWM |
| Power supplies | apart from the luminaireordered separately |
| Angle of distribution | 10˚, 20˚, 45˚ |
| Rated power [W] | 6 |
| Nominal voltage [V] | 12V/24V DC |
| Lumen output [lm] | 470 |
| Colour rendering index (CRI) | ≥80 |
| Light emission | direct |
