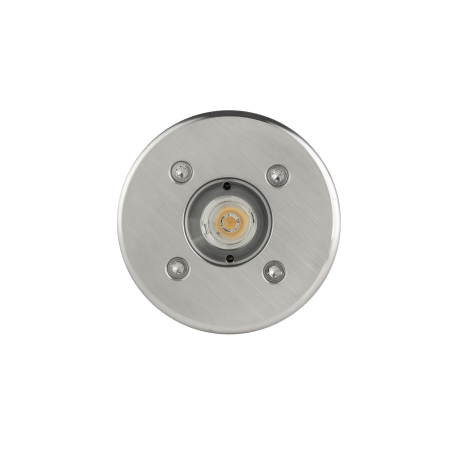

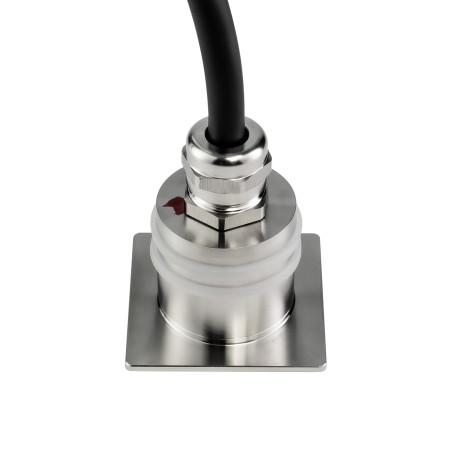

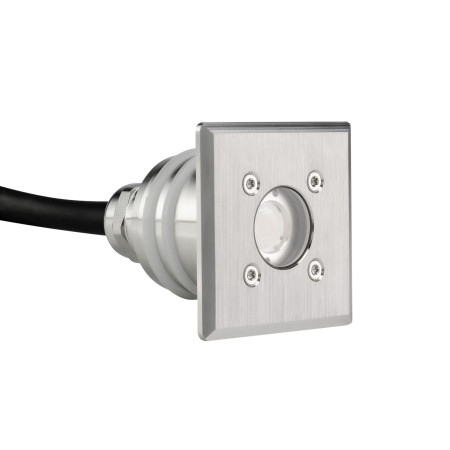

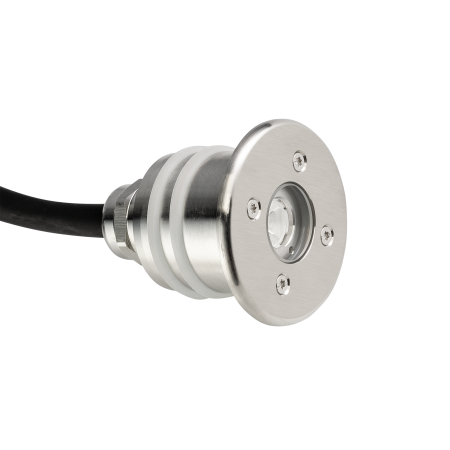

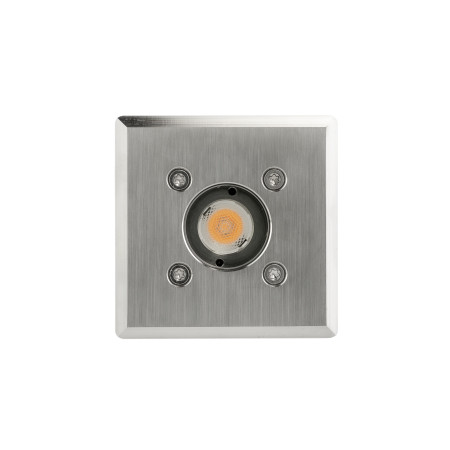

GROUND MINI
Technical drawings
| Housing | SS316L, Brass |
|---|---|
| Rated power [W] | 3.5 |
| Light source | LED |
| Lumen output [lm] | |
| Luminous flux tolerance | 10% |
| SDCM colour tolerance | <3 |
| Light distribution / Emission | direct |
| Angle of distribution | 15, 27, 43 |
| IP protection class | IP67 |
| Impact resistance | IK10 |
| Working temperature range | -20°C ÷ +55°C |
| Lifetime L80B10 | 60 000h |
| Protection class | III |
| Wiring | H07RN-F 2X1.5 |
| Connection | 0.5m |
| Dimming | ON-OFF |
| Power supplies | apart from the luminaire |
| Dimensions | Dia: 50mm / L: 50mm x H: 54.1mm x W: 50mm |
| Load [KG] | 120 KG |
| Power supply type | 12-24V DC |
| CRI | 80 |
Variants
GROUND MINI
(30)
 | GROUND-MINI-3-AW-15-RD-SS-LV | 3.5 | 2200K | 90 | 12-24V DC | 15 | SS316L | SS316L | ON-OFF | |
 | GROUND-MINI-3-AW-15-SQ-SS-LV | 3.5 | 2200K | 90 | 12-24V DC | 15 | SS316L | SS316L | ON-OFF | |
| GROUND-MINI-3-AW-27-RD-SS-LV | 3.5 | 2200K | 90 | 12-24V DC | 27 | SS316L | SS316L | ON-OFF | |
| GROUND-MINI-3-AW-27-SQ-SS-LV | 3.5 | 2200K | 90 | 12-24V DC | 27 | SS316L | SS316L | ON-OFF | |
| GROUND-MINI-3-AW-43-RD-SS-LV | 3.5 | 2200K | 90 | 12-24V DC | 43 | SS316L | SS316L | ON-OFF | |
| GROUND-MINI-3-AW-43-SQ-SS-LV | 3.5 | 2200K | 90 | 12-24V DC | 43 | SS316L | SS316L | ON-OFF | |
| GROUND-MINI-3-CW-15-RD-SS-LV | 3.5 | 6000K | 80 | 12-24V DC | 15 | SS316L | SS316L | ON-OFF | |
| GROUND-MINI-3-CW-15-SQ-SS-LV | 3.5 | 6000K | 80 | 12-24V DC | 15 | SS316L | SS316L | ON-OFF | |
| GROUND-MINI-3-CW-27-RD-SS-LV | 3.5 | 6000K | 80 | 12-24V DC | 27 | SS316L | SS316L | ON-OFF | |
| GROUND-MINI-3-CW-27-SQ-SS-LV | 3.5 | 6000K | 80 | 12-24V DC | 27 | SS316L | SS316L | ON-OFF | |
| GROUND-MINI-3-CW-43-RD-SS-LV | 3.5 | 6000K | 80 | 12-24V DC | 43 | SS316L | SS316L | ON-OFF | |
| GROUND-MINI-3-CW-43-SQ-SS-LV | 3.5 | 6000K | 80 | 12-24V DC | 43 | SS316L | SS316L | ON-OFF |
30 Variants
