Ground Medium Premium 220-240V AC 50/60Hz
GROUND MEDIUM PREMIUM 220-240V AC 50/60Hz

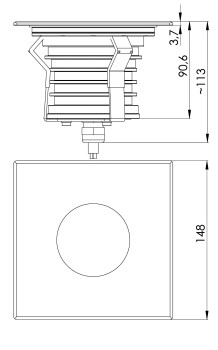

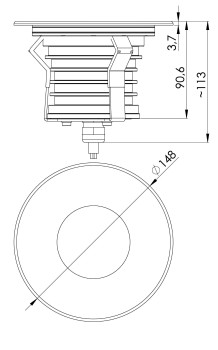

Technical drawings
The Ground Medium Premium series of max 20W is designed to achieve the best visual effect by having no screws on the front. They are made of the highest quality materials such as marine steel, high purity glass and modern CREE LEDs. Niviss Ground Medium Premium fixture can be used to illuminate a wide range of places and facilities, such as parks, gardens, terraces, squares, premises.
| Housing | AluminumSS316l |
|---|---|
| Glass type | Tempered |
| Light source | LED |
| Luminous flux tolerance | ±10% |
| SDCM colour tolerance | <3 |
| Light distribution | symmetrical |
| IP protection class | IP67 |
| Impact resistance | IK10 |
| Working temperature range | -20˚C ÷ +55˚C |
| Lifetime L80B10 | ≥ 60 000h |
| Protection class | I |
| Wiring | H07RN-F 3G1 |
| Connection | 0.5m |
| Dimming | ON-OFF |
| Power supplies | inside the luminaire |
| Angle of distribution | 10˚, 20˚, 30˚ |
| Rated power [W] | 20 |
| Nominal voltage [V] | 220-240V AC 50/60Hz |
| Lumen output [lm] | 1500 |
| Colour rendering index (CRI) | ≥80 |
| Light emission | direct |
