Flood nScope 220-240V AC 50/60Hz
FLOOD NSCOPE 220-240V AC 50/60Hz
Technical drawings

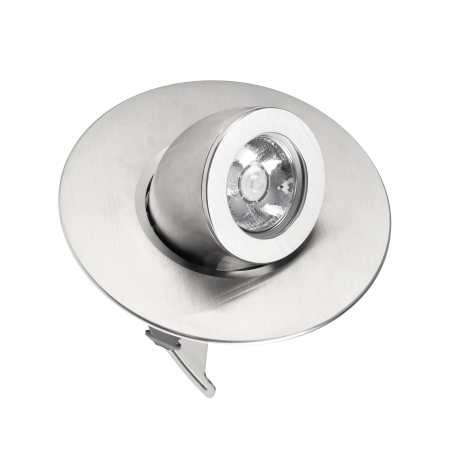

The nScope was designed for the most demanding customers who are looking for customized solutions. Made of 316L steel. Power of 13W. nScope can be used to illuminate many places and objects such as parks, gardens, terraces, squares.
| Housing | SS316L |
|---|---|
| Glass type | Tempered |
| Light source | LED |
| Luminous flux tolerance | 10% |
| SDCM colour tolerance | <3 |
| Light distribution | symmetrical |
| IP protection class | IP67 |
| Impact resistance | IK10 |
| Working temperature range | (-20°C ÷ +55°C) |
| Lifetime L80B10 | ≥ 60 000h |
| Protection class | I |
| Wiring | H07RN-F 3G1 |
| Connection | 0.5m |
| Dimming | ON-OFF |
| Power supplies | inside the luminaire |
| Angle of distribution | 10˚, 20˚, 30˚ |
| Rated power [W] | 13 |
| Nominal voltage [V] | 220-240V AC 50HZ |
| Lumen output [lm] | 1400 |
| Colour rendering index (CRI) | ≥80 |
| Light emission | direct |
