nWALL Tube Round 220-240V AC 50/60Hz
NWALL TUBE ROUND 220-240V AC 50/60HZ

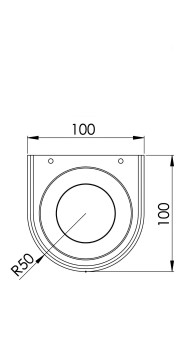

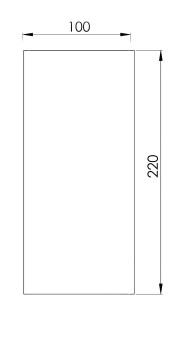

Technical drawings
Niviss Nwall Tube is a wall lamp Dual-beam with a subdued circular design. It consists of die-cast aluminium, a reflective cup and toughened glass. with a high-quality special powder spraying process on the outside, which can make the lamp have a high weather resistance and anti-aging function, and the protection rating is IP65. They can be used as indoor and outdoor facade lighting, architectural decorative lighting.
| Housing | Aluminum |
|---|---|
| Glass type | Tempered |
| Rated power [W] | 24 |
| Nominal voltage [V] | 220-240V AC 50/60Hz |
| Light source | LED |
| Lumen output [lm] | 2350 |
| Luminous flux tolerance | ±10% |
| Colour rendering index (CRI) | ≥80 |
| SDCM colour tolerance | <3 |
| Light distribution | symmetrical |
| Angle of distribution | 18˚, 36˚ |
| IP protection class | IP65 |
| Impact resistance | IK07 |
| Working temperature range | -20˚C ÷ +55˚C |
| Lifetime L80B10 | ≥ 60 000h |
| Protection class | I |
| Dimming | DALI 2 |
| Power supplies | inside the luminaire |
| Light emission | direct |
