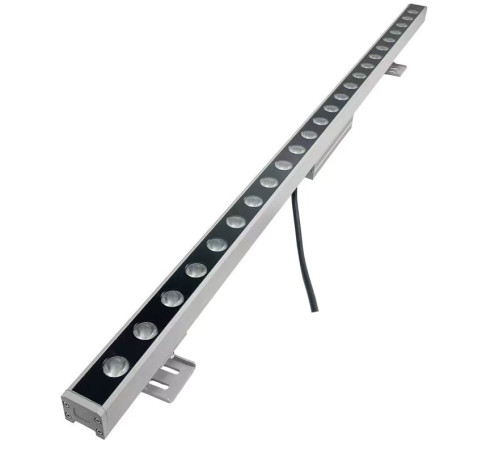

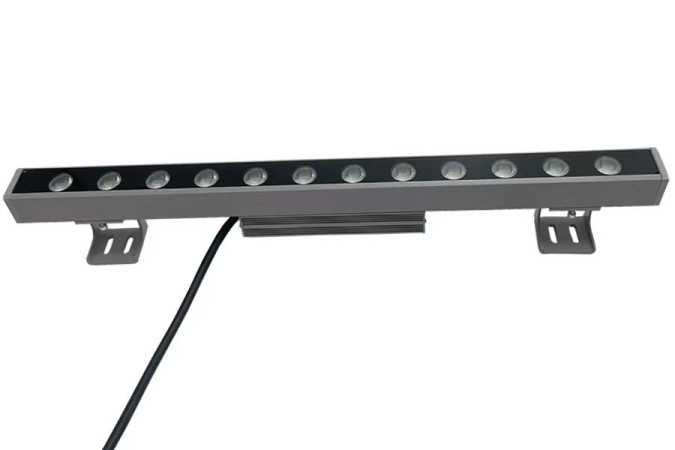

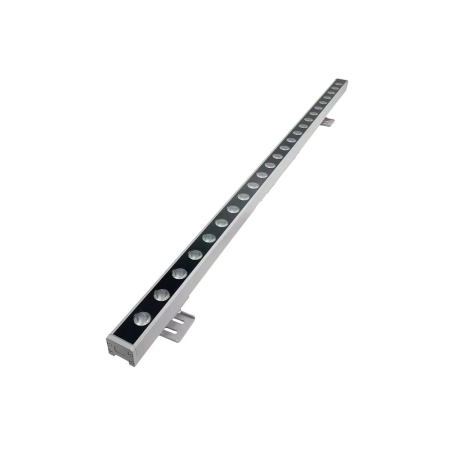

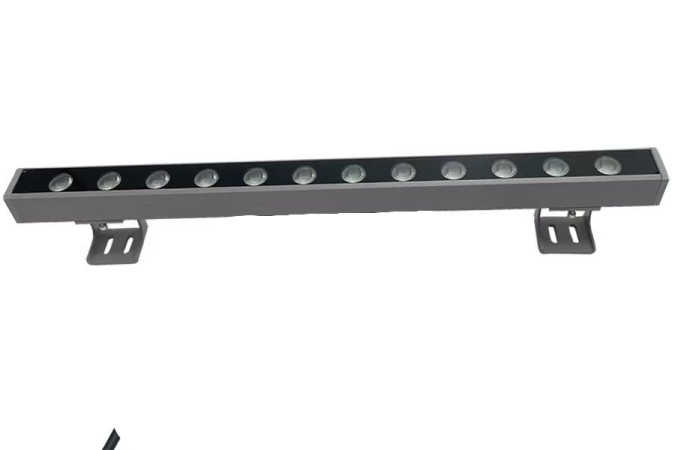

Surface Linear 12V/24V DC
SURFACE LINEAR 12V/24V DC
Technical drawings
The Ground Linear series has been designed using modern simulation methods to achieve the highest product quality. Product based on LEDs from the renowned American company CREE. Power 20W/40W. Niviss Ground Linear luminaires can be used for lighting and illuminating many places and objects, such as parks, gardens, monuments, squares, among others.
| Housing | Aluminum |
|---|---|
| Glass type | Tempered | Tempered with anti-scratch coating |
| Working temperature range | -20˚C ÷ +55˚C |
| IP protection class | IP67 |
| Lifetime L80B10 | ≥ 60 000h |
| Impact resistance | IK10 |
| Protection class | I |
| Connection | 0.2m |
| Wiring | H05RN-F 2X0.5 |
| Dimming | PWM, ON-OFF |
| Light emission | direct |
| Colour rendering index | ≥80 |
| SDCM colour tolerance | <3 |
| Luminous flux tolerance | ±10% |
| Power supplies | inside the luminaire |
| Light distribution | symmetrical |
| Nominal voltage [V] | 12V/24V DC |
| Rated power [W] | 20 |
| Light source | LED |
| Angle of distribution | 10°, 40°, Asymmetric, Elliptical |
