REFLED 12V/24V DC
REFLED 12V/24V DC

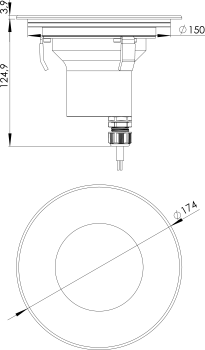

Technical drawings
Niviss Refled is a new way of thinking in the entire lighting industry. The lamp has a maximum power of 20W and a voltage of 12V/24V DC. The new design of the optics and motion sensor combines modern luminaire design and features. The product has a passive eye protection system, which allows a 10-fold reduction in glare compared to lamps from other manufacturers, and an active eye protection system that provides a 100-fold reduction in glare. The Refled luminaire can be used to illuminate many places and objects such as parks, gardens, terraces, squares, properties, plants.
| Housing | SS316LAluminum |
|---|---|
| Glass type | Tempered | Tempered with anti-scratch coating |
| Rated power [W] | 20 |
| Nominal voltage [V] | 12V/24V DC |
| Light source | LED |
| Lumen output [lm] | 1200 |
| Luminous flux tolerance | ±10% |
| Colour rendering index (CRI) | ≥90 |
| SDCM colour tolerance | <6 |
| Light distribution | symmetrical |
| Angle of distribution | 55˚ |
| IP protection class | IP69K |
| Impact resistance | IK10 |
| Working temperature range | -20˚C ÷ +55˚C |
| Lifetime L80B10 | ≥ 60 000h |
| Protection class | III |
| Wiring | H07RN-F 2X1.5 |
| Connection | 0.5m |
| Dimming | ON-OFF | Active Eye Protection System |
| Power supplies | apart from the luminaireordered separately |
| Light emission | indirect |
