REFLED ASYMMETRIC 220-240V AC 50/60Hz
Technical drawings
![refled n.jpg](/pim/core/resource/file/ODgvNjMvOGYwMmM4ZWUyYzc5M2EyYTkzOTZjOGRhMmFhNzI3MzY0ZDRhYWVhMy5qcGc=/refled+n.jpg?w=240&h=350)

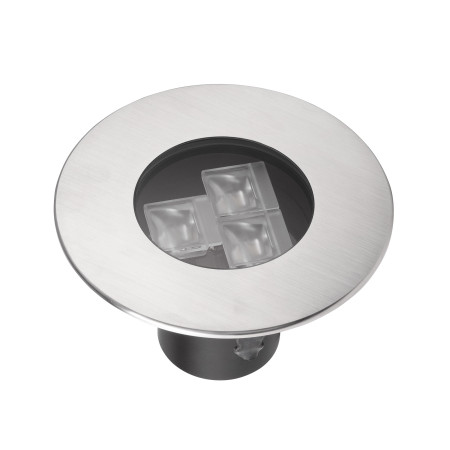

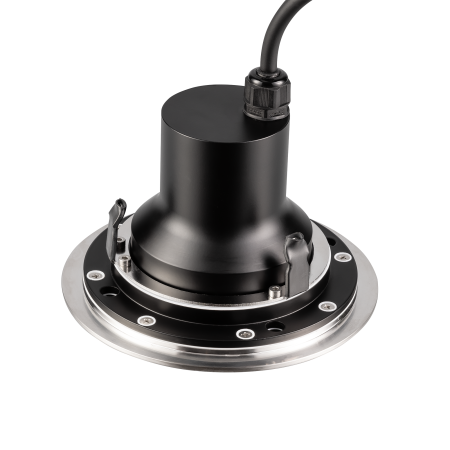

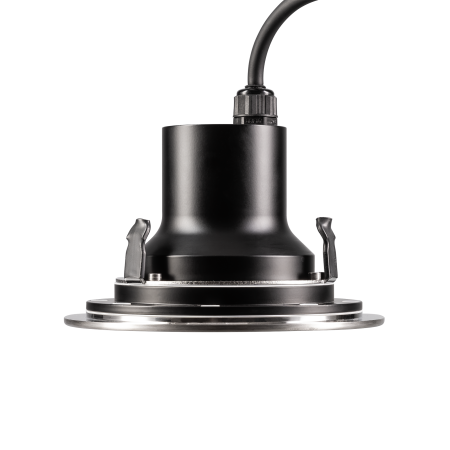

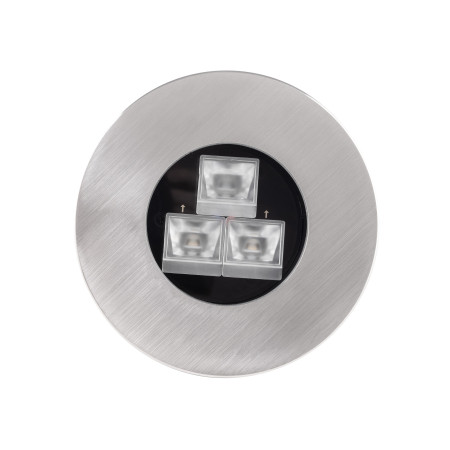

Niviss Refled ASYMMETRIC serie is a new way of thinking in the entire lighting industry. The lamp has maxium power of max 18W and a voltage 220-240V AC 50/60Hz is designed to achieve the best visual effect by having no screws on the front.They are made of the highest quality materials such as marine steel, high purity glass and modern CREE LEDs. Niviss Refled ASYMMETRIC serie can be used to illuminate a wide range of places and facilities auch as parks, gardensm, terraces, squares, premis
Housing | SS316LAluminum |
---|---|
Glass type | Tempered | Tempered with anti-scratch coating |
Working temperature range | -20˚C ÷ +55˚C |
IP protection class | IP67 |
Lifetime L80B10 | ≥ 65 000h |
Impact resistance | IK10 |
Protection class | I |
Connection | 0.5m |
Wiring | H07RN-F 3G1 |
Dimming | ON-OFF |
Light emission | indirect |
Colour rendering index | ≥80 |
SDCM colour tolerance | <3 |
Luminous flux tolerance | ±10% |
Power supplies | inside the luminaire |
Light distribution | asymmetrical |
Nominal voltage [V] | 220-240V AC 50/60Hz |
Rated power [W] | 18 |
Light source | LED |
