nStep Standard 220-240V AC 50/60Hz
NSTEP STANDARD 220-240V AC 50/60Hz

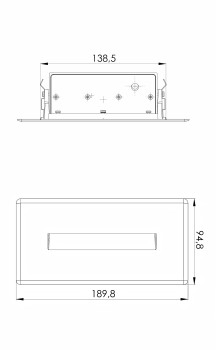

Technical drawings
Niviss nStep Standard luminaire, thanks to its original design and aluminum construction, can be used in both classic and modern interiors. 9,8W. This lamp can be used to illuminate many places and objects, such as stairs, gardens, corridors, terraces, shopping malls.
| Housing | Aluminum/PC |
|---|---|
| Rated power [W] | 9.8 |
| Nominal voltage [V] | 220-240V AC 50/60Hz |
| Light source | LED |
| Lumen output [lm] | 1000 |
| Luminous flux tolerance | ±10% |
| Colour rendering index (CRI) | ≥80 |
| SDCM colour tolerance | <3 |
| Light distribution | asymmetrical |
| IP protection class | IP65 |
| Working temperature range | -20˚C ÷ +55˚C |
| Lifetime L80B10 | ≥ 60 000h |
| Protection class | I |
| Wiring | H07RN-F 3G1 |
| Connection | 0.2m |
| Dimming | ON-OFF |
| Power supplies | inside the luminaire |
| Light emission | indirect |
