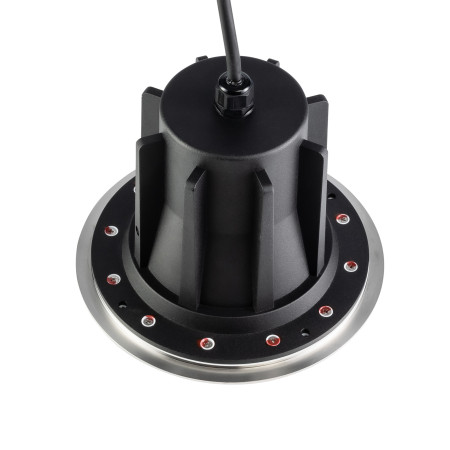

nGround Big 220-240V AC 50/60Hz
NGROUND BIG 220-240V AC 50/60Hz
Technical drawings
The nGround Big series, with a maximum wattage of 30W, was designed for the most demanding customers looking for customized and economical solutions. The luminaires are ideal for illuminating garden and park spaces. Thanks to their lightweight design, they are easy to install on outdoor walls. The lamp is designed for installation in places such as gardens, parks, exterior walls, plants.
| Housing | AluminumSS316l |
|---|---|
| Glass type | Tempered |
| Light source | LED |
| Luminous flux tolerance | ±10% |
| SDCM colour tolerance | <3 |
| Light distribution | symmetrical |
| IP protection class | IP67 |
| Impact resistance | IK10 |
| Working temperature range | -20˚C ÷ +55˚C |
| Lifetime L80B10 | ≥ 60 000h |
| Protection class | I |
| Wiring | H07RN-F 3G1 |
| Connection | 0.5m |
| Dimming | ON-OFF |
| Power supplies | inside the luminaire |
| Angle of distribution | 20˚, 30˚ |
| Rated power [W] | 30 |
| Nominal voltage [V] | 220-240V AC 50/60Hz |
| Lumen output [lm] | 3700 |
| Colour rendering index (CRI) | ≥80 |
| Light emission | direct |
