NFLOOD STANDARD COWL 220-240V AC 50/60Hz
Technical drawings

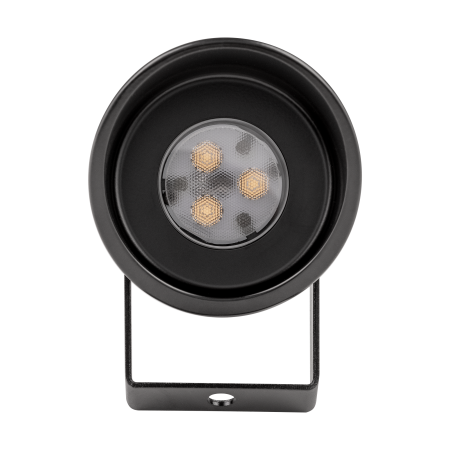

The nFloodlight Standard is made of aluminum. The projector comes in a version on a mounting plate or on a spike (for ground mounting). Power of 5W. nFloodlight Standard can be used to illuminate many places and objects, such as parks, gardens, exterior walls, monuments, premises.
| Housing | Aluminium |
|---|---|
| Glass type | Tempered |
| Light source | LED |
| Luminous flux tolerance | 10% |
| SDCM colour tolerance | <3 |
| Light distribution / Emission | symmetrical |
| IP protection class | IP67 |
| Impact resistance | IK10 |
| Working temperature range | -20°C ÷ +55°C |
| Lifetime L80B10 | ≥ 60 000h |
| Protection class | I |
| Wiring | H07RN-F 3G1 |
| Connection | 0.5m |
| Dimming | ON-OFF |
| Power supplies | inside the luminaire |
| Angle of distribution | 25˚, 45˚ |
| Rated power [W] | 5 |
| Nominal voltage [V] | 220-240V AC 50/60Hz |
| Lumen output [lm] | 540 |
| Colour rendering index (CRI) | ≥80 |
Variants
NFLOOD STANDARD COWL 220-240V AC 50/60Hz
(8)
| NFLOOD-STANDARD-PRC-5-CW-25-RD-AA-HV-R | 5 | 620 | 5000 | ≥80 | 220-240V AC 50/60Hz | 10 |
| NFLOOD-STANDARD-PRC-5-CW-45-RD-AA-HV-R | 5 | 620 | 5000 | ≥80 | 220-240V AC 50/60Hz | 20 |
| NFLOOD-STANDARD-PRC-5-NW-25-RD-AA-HV-R | 5 | 580 | 4000 | ≥80 | 220-240V AC 50/60Hz | 10 |
| NFLOOD-STANDARD-PRC-5-NW-45-RD-AA-HV-R | 5 | 580 | 4000 | ≥80 | 220-240V AC 50/60Hz | 20 |
| NFLOOD-STANDARD-PRC-5-VW-25-RD-AA-HV-R | 5 | 500 | 2700 | ≥80 | 220-240V AC 50/60Hz | 10 |
| NFLOOD-STANDARD-PRC-5-VW-45-RD-AA-HV-R | 5 | 500 | 2700 | ≥80 | 220-240V AC 50/60Hz | 20 |
| NFLOOD-STANDARD-PRC-5-WW-25-RD-AA-HV-R | 5 | 540 | 3000 | ≥80 | 220-240V AC 50/60Hz | 10 |
| NFLOOD-STANDARD-PRC-5-WW-45-RD-AA-HV-R | 5 | 540 | 3000 | ≥80 | 220-240V AC 50/60Hz | 20 |
8 Variants
