NFLOOD MEDIUM 220-240V AC 50/60Hz
Technical drawings

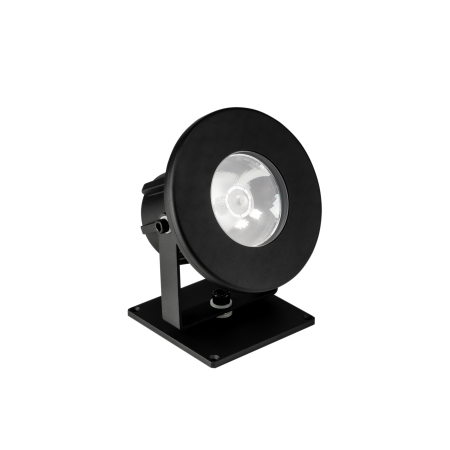

The nFloodlight Medium projector is made of aluminum. The projector comes in a version on a plate. Power 17W. The nFloodlight Medium luminaire can be used to illuminate many places and objects, such as parks, gardens, exterior walls, monuments, rooms.
| Housing | Aluminium |
|---|---|
| Glass type | Tempered |
| Light source | LED |
| Luminous flux tolerance | 10% |
| SDCM colour tolerance | <3 |
| Light distribution / Emission | symmetrical |
| IP protection class | IP67 |
| Impact resistance | IK10 |
| Working temperature range | -20°C ÷ +55°C |
| Lifetime L80B10 | ≥ 60 000h |
| Protection class | I |
| Wiring | H07RN-F 3G1 |
| Connection | 0.5m |
| Dimming | ON-OFF |
| Power supplies | inside the luminaire |
| Angle of distribution | 10˚, 20˚, 30˚ |
| Rated power [W] | 17 |
| Nominal voltage [V] | 220-240V AC 50/60Hz |
| Lumen output [lm] | 1390 |
| Colour rendering index (CRI) | ≥80 |
Variants
NFLOOD MEDIUM 220-240V AC 50/60Hz
(12)
| NFLOOD-MEDIUM-17-CW-10-RD-AA-HV-COB-R | 17 | 1520 | 5000 | ≥80 | 220-240V AC 50/60Hz | 10 |
| NFLOOD-MEDIUM-17-CW-20-RD-AA-HV-COB-R | 17 | 1520 | 5000 | ≥80 | 220-240V AC 50/60Hz | 20 |
| NFLOOD-MEDIUM-17-CW-30-RD-AA-HV-COB-R | 17 | 1520 | 5000 | ≥80 | 220-240V AC 50/60Hz | 30 |
| NFLOOD-MEDIUM-17-NW-10-RD-AA-HV-COB-R | 17 | 1450 | 4000 | ≥80 | 220-240V AC 50/60Hz | 10 |
| NFLOOD-MEDIUM-17-NW-20-RD-AA-HV-COB-R | 17 | 1450 | 4000 | ≥80 | 220-240V AC 50/60Hz | 20 |
| NFLOOD-MEDIUM-17-NW-30-RD-AA-HV-COB-R | 17 | 1450 | 4000 | ≥80 | 220-240V AC 50/60Hz | 30 |
| NFLOOD-MEDIUM-17-VW-10-RD-AA-HV-COB-R | 17 | 1330 | 2700 | ≥80 | 220-240V AC 50/60Hz | 10 |
| NFLOOD-MEDIUM-17-VW-20-RD-AA-HV-COB-R | 17 | 1330 | 2700 | ≥80 | 220-240V AC 50/60Hz | 20 |
| NFLOOD-MEDIUM-17-VW-30-RD-AA-HV-COB-R | 17 | 1330 | 2700 | ≥80 | 220-240V AC 50/60Hz | 30 |
| NFLOOD-MEDIUM-17-WW-10-RD-AA-HV-COB-R | 17 | 1390 | 3000 | ≥80 | 220-240V AC 50/60Hz | 10 |
| NFLOOD-MEDIUM-17-WW-20-RD-AA-HV-COB-R | 17 | 1390 | 3000 | ≥80 | 220-240V AC 50/60Hz | 20 |
| NFLOOD-MEDIUM-17-WW-30-RD-AA-HV-COB-R | 17 | 1390 | 3000 | ≥80 | 220-240V AC 50/60Hz | 30 |
12 Variants
