NDISC STANDARD 24V DC
Technical drawings

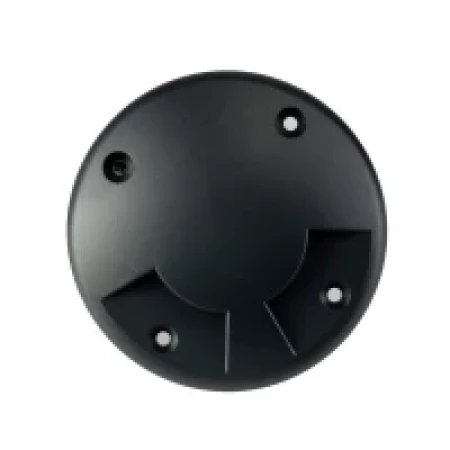

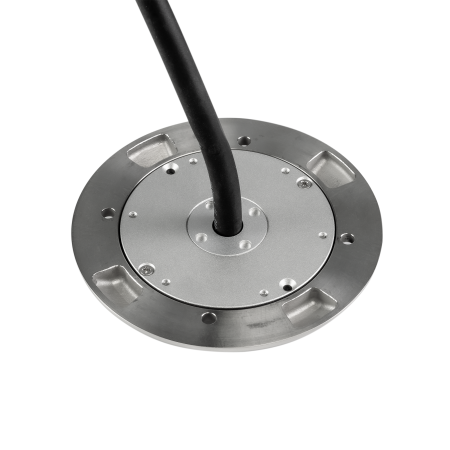

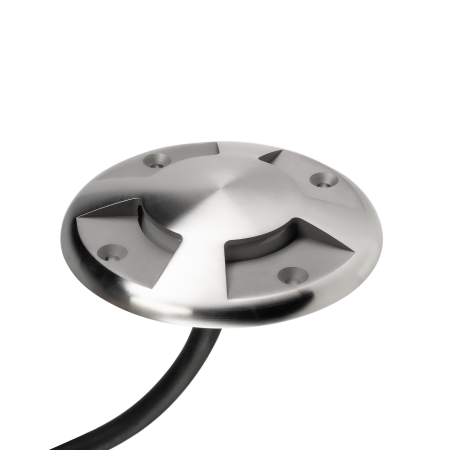

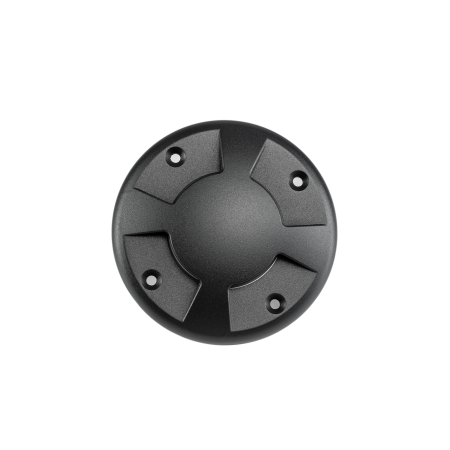

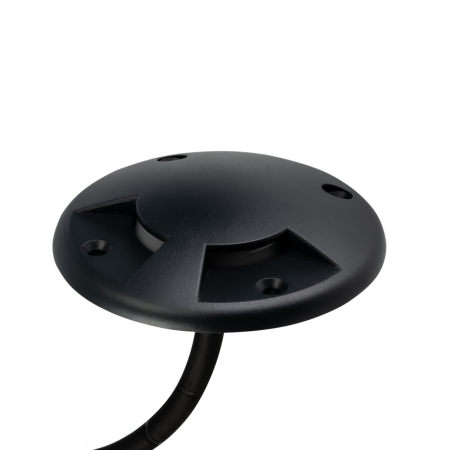

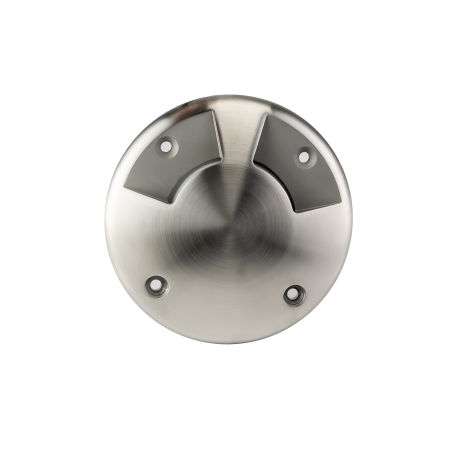

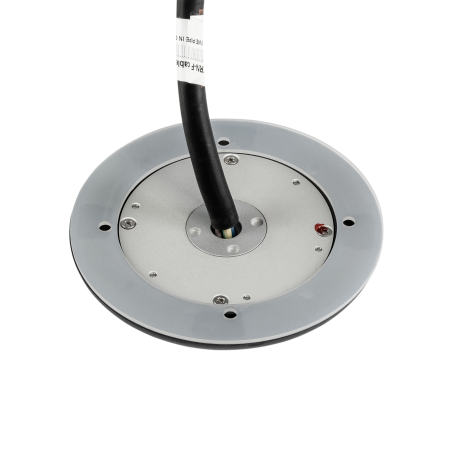

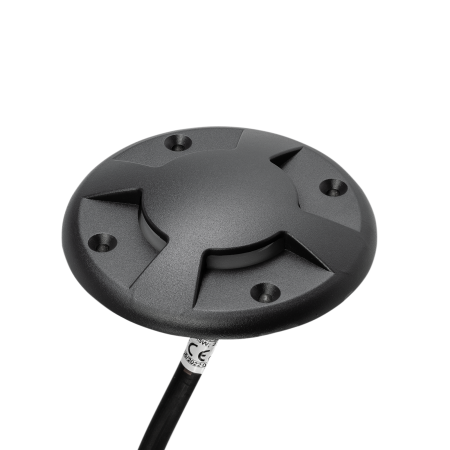

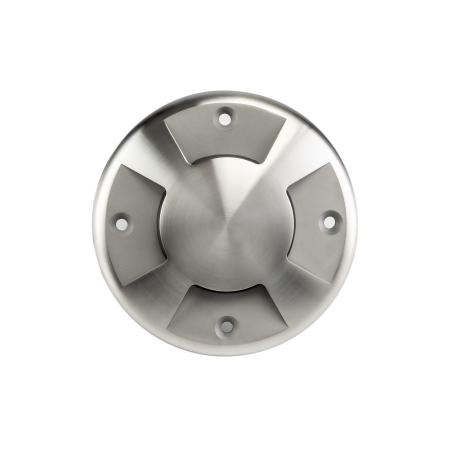

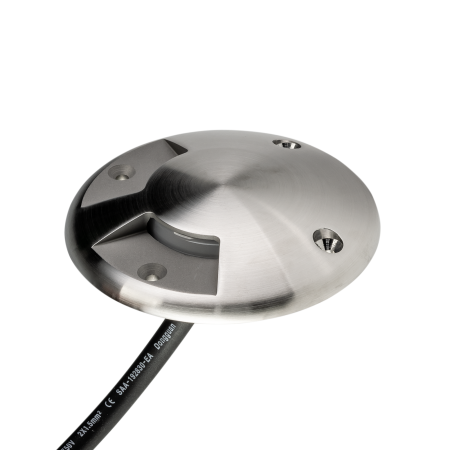

The nDisc Standard comes in two versions: SS316L steel or aluminum. Power of 3W and working pressure of 1100kg. Niviss nDisc Standard can be used to illuminate a wide range of places and facilities, such as parking lots, parks, terraces, premises, gardens.
| Housing | SS316LAluminum |
|---|---|
| Load [KG] | 1100 KG |
| Working temperature range | -20˚C ÷ +55˚C |
| IP protection class | IP67 |
| Lifetime L80B10 | ≥ 60 000h |
| Impact resistance | IK10 |
| Protection class | III |
| Connection | 0.5m |
| Wiring | H07RN-F 2X1.5 |
| Dimming | ON-OFF/PWM |
| Light emission | indirect |
| Colour rendering index | ≥80 |
| SDCM colour tolerance | <3 |
| Luminous flux tolerance | ±10% |
| Power supplies | apart from the luminaireordered separately |
| Light distribution | symmetrical |
| Nominal voltage [V] | 24V DC |
| Rated power [W] | 5 |
| Light source | LED |
