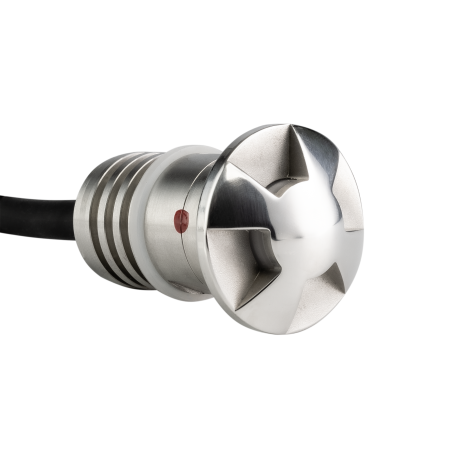

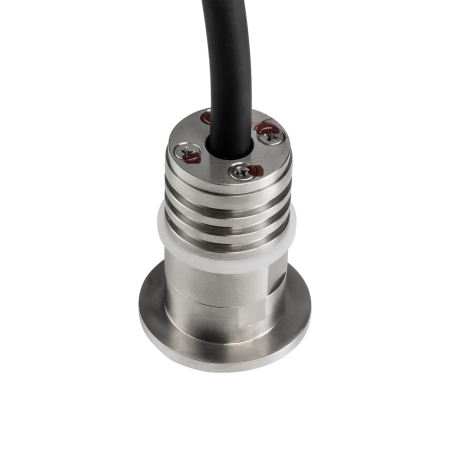

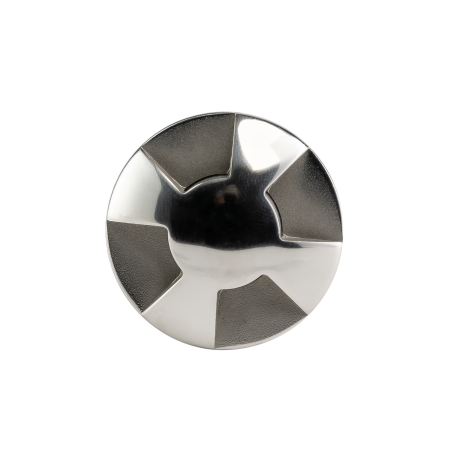

NDISC MICRO
Technical drawings
| Housing | BrassSS316L |
|---|---|
| Light source | LED Module (replaceable) |
| Lumen output [lm] | |
| Luminous flux tolerance | 10% |
| SDCM colour tolerance | <3 |
| Light distribution / Emission | symmetric / direct |
| IP protection class | IP67 |
| Impact resistance | IK10 |
| Working temperature range | -20°C ÷ +55°C |
| Lifetime L80B10 | 60 000h |
| Protection class | III |
| Wiring | H07RN-F 2X1.5 |
| Connection | 0.5m |
| Dimming | ON-OFF / DALI (external driver) |
| Power supplies | built-in |
| Dimensions | Dia: 40,3mm x H:58mm |
| Load [KG] | 800 KG |
| Power supply type | 12V-24V DC |
| CRI | >90 / >80 |
Description
Variants
NDISC MICRO
(10)
 | NDISC-MICRO-2-AW-4-RD-BB-LV-R | 2 | 2200K | 90 | 12-24V DC | Brass | Brass | DALI | 4 | |
 | NDISC-MICRO-2-AW-4-RD-SS-LV-R | 2 | 2200K | 90 | 12-24V DC | SS316L | SS316L | DALI | 4 | |
| NDISC-MICRO-2-CW-4-RD-BB-LV-R | 2 | 6000K | 80 | 12-24V DC | Brass | Brass | DALI | 4 | |
| NDISC-MICRO-2-CW-4-RD-SS-LV-R | 2 | 6000K | 80 | 12-24V DC | SS316L | SS316L | DALI | 4 | |
| NDISC-MICRO-2-NW-4-RD-BB-LV-R | 2 | 4000K | 80 | 12-24V DC | Brass | Brass | DALI | 4 | |
| NDISC-MICRO-2-NW-4-RD-SS-LV-R | 2 | 4000K | 80 | 12-24V DC | SS316L | SS316L | DALI | 4 | |
| NDISC-MICRO-2-VW-4-RD-BB-LV-R | 2 | 2700K | 90 | 12-24V DC | Brass | Brass | DALI | 4 | |
| NDISC-MICRO-2-VW-4-RD-SS-LV-R | 2 | 2700K | 90 | 12-24V DC | SS316L | SS316L | DALI | 4 | |
| NDISC-MICRO-2-WW-4-RD-BB-LV-R | 2 | 3000K | 90 | 12-24V DC | Brass | Brass | DALI | 4 | |
| NDISC-MICRO-2-WW-4-RD-SS-LV-R | 2 | 3000K | 90 | 12-24V DC | SS316L | SS316L | DALI | 4 |
10 Variants
