nBollard 220-240V AC 50/60Hz
NBOLLARD 220-240V AC 50/60HZ
Technical drawings
The Bollard series was designed using modern simulation methods to achieve the highest quality product. The product based on LEDs of the renowned American company CREE. Power 24W. Bollard outdoor lighting fixtures from Niviss can be used to illuminate and illuminate many places and objects, such as parks, gardens, monuments, squares, fountains, among others.
| Housing | Aluminum |
|---|---|
| Working temperature range | -20˚C ÷ +55˚C |
| IP protection class | IP67 |
| Lifetime L80B10 | ≥ 65 000h |
| Impact resistance | IK10 |
| Protection class | I |
| Connection | 0.5m |
| Dimming | ON-OFF/DALI-2 DT6 |
| Light emission | indirect |
| Colour rendering index | ≥80 |
| SDCM colour tolerance | <3 |
| Luminous flux tolerance | ±10% |
| Power supplies | inside the luminaire |
| Light distribution | symmetrical |
| Nominal voltage [V] | 220-240V AC 50/60Hz |
| Rated power [W] | 24 |
| Light source | LED |

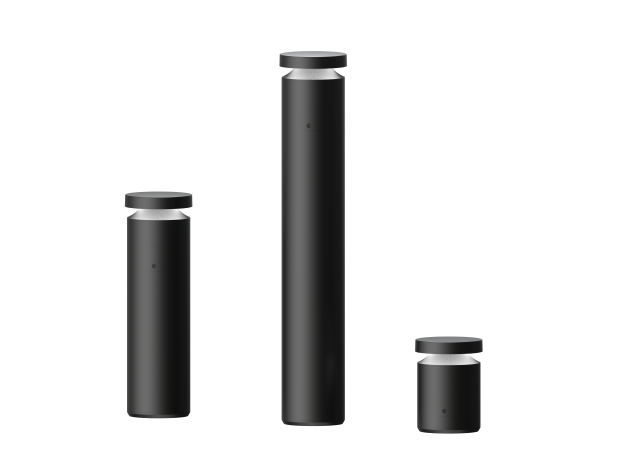

| Height | 250/600/1000mm |
| Angle of distribution | 360˚ |
