Linear Led Module 4 feet 1120x20mm 36V LINNEA

Linear Led Module 4 feet 1120x20mm 36V LINNEA

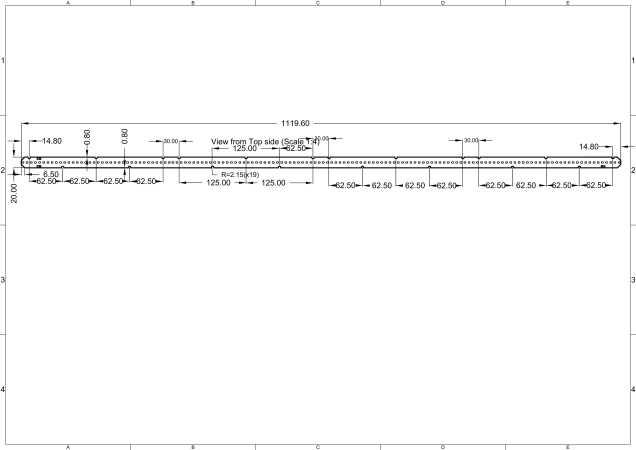

DK250913_MOD-144R1120x20 144V 36VperFT_VA01([No Variations])_3D.JPG

LINNEA 36V LED module with a length of 1120 mm and width of 20 mm for large-area lighting. Provides consistent light output, high efficiency, and durability in demanding environments.

Max efficiency [lm/W]	204 lm/W
Voltage [Vf]	144 V
Length [mm]	1120 mm
Width [mm]	20 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	FR4

Files to download

Datasheet-general

General terms and conditions of guarantee.pdf

DK250913_VA01_3D.step

Variants Linear Led Module 4 feet 1120x20mm 36V LINNEA (14)


MOD-144R1120x20-JB2835BJ-2790-VA01	3576 lm	2700 K	90	144 V	55 °C
MOD-144R1120x20-JB2835BJ-3590-VA01	3864 lm	3500 K	90	144 V	55 °C
MOD-144R1120x20-JB2835BJ-5790-VA01	4000 lm	5700 K	90	144 V	55 °C
MOD-144R1120x20-JB2835BJ-6590-VA01	4000 lm	6500 K	90	144 V	55 °C
MOD-144R1120x20-JB2835BJ-5090-VA01	4000 lm	5000 K	90	144 V	55 °C
MOD-144R1120x20-JB2835BJ-4090-VA01	4000 lm	4000 K	90	144 V	55 °C
MOD-144R1120x20-JB2835BJ-4080-VA01	4676 lm	4000 K	80	144 V	55 °C
MOD-144R1120x20-JB2835BJ-6580-VA01	4676 lm	6500 K	80	144 V	55 °C
MOD-144R1120x20-JB2835BJ-3090-VA01	3740 lm	3000 K	90	144 V	55 °C
MOD-144R1120x20-JB2835BJ-3080-VA01	4392 lm	3000 K	80	144 V	55 °C
MOD-144R1120x20-JB2835BJ-5780-VA01	4676 lm	5700 K	80	144 V	55 °C
MOD-144R1120x20-JB2835BJ-5080-VA01	4676 lm	5000 K	80	144 V	55 °C

14 Variants
