Linear Led Module 2 feet 560x24mm 42V LINNEA

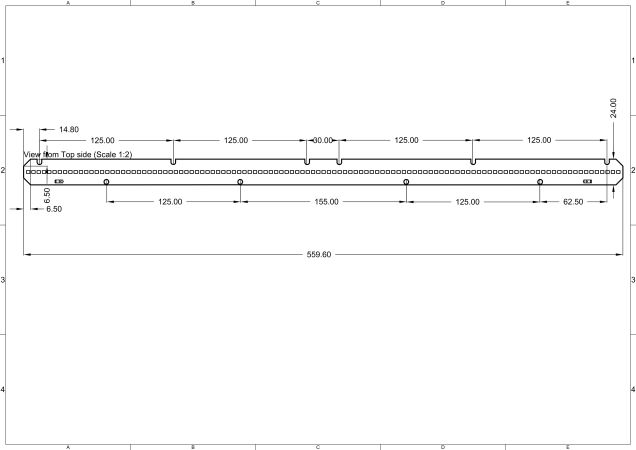

Technical drawings
LINNEA 42V LED module with a length of 560 mm and width of 24 mm for professional LED installations. Delivers high efficiency and durability.
| Max efficiency [lm/W] | 201 lm/W |
|---|---|
| Voltage [Vf] | 84 V |
| Length [mm] | 560 mm |
| Width [mm] | 24 mm |
| Color temp [K] | 2700-6500K |
| CRI/RA | 80/90 |
| PCB Material | FR4 |
Variants
Linear Led Module 2 feet 560x24mm 42V LINNEA
(14)
| MOD-112R560x24-JB2835BJ-6590-VA01 | 3610 lm | 6500 K | 90 | 84 V | 55 °C |
| MOD-112R560x24-JB2835BJ-5790-VA01 | 3610 lm | 5700 K | 90 | 84 V | 55 °C |
| MOD-112R560x24-JB2835BJ-5090-VA01 | 3610 lm | 5000 K | 90 | 84 V | 55 °C |
| MOD-112R560x24-JB2835BJ-4090-VA01 | 3610 lm | 4000 K | 90 | 84 V | 55 °C |
| MOD-112R560x24-JB2835BJ-5080-VA01 | 4222 lm | 5000 K | 80 | 84 V | 55 °C |
| MOD-112R560x24-JB2835BJ-3090-VA01 | 3378 lm | 3000 K | 90 | 84 V | 55 °C |
| MOD-112R560x24-JB2835BJ-2790-VA01 | 3228 lm | 2700 K | 90 | 84 V | 55 °C |
| MOD-112R560x24-JB2835BJ-3590-VA01 | 3488 lm | 3500 K | 90 | 84 V | 55 °C |
| MOD-112R560x24-JB2835BJ-6580-VA01 | 4222 lm | 6500 K | 80 | 84 V | 55 °C |
| MOD-112R560x24-JB2835BJ-5780-VA01 | 4222 lm | 5700 K | 80 | 84 V | 55 °C |
| MOD-112R560x24-JB2835BJ-3080-VA01 | 3964 lm | 3000 K | 80 | 84 V | 55 °C |
| MOD-112R560x24-JB2835BJ-4080-VA01 | 4222 lm | 4000 K | 80 | 84 V | 55 °C |
14 Variants
