Linear Led Module 2 feet 560x24mm 12V LINNEA

Linear Led Module 2 feet 560x24mm 12V LINNEA

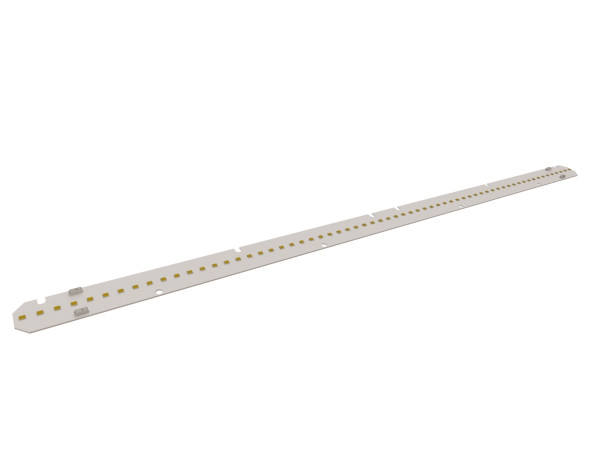

DK250921_MOD-64R560x24 24V(12Vper1FT)_VA01_3D.JPG

LINNEA 12V LED module with a length of 560 mm and width of 24 mm for low-voltage installations. Ensures stable light output, high efficiency, and easy system integration.

Max efficiency [lm/W]	201 lm/W
Voltage [Vf]	24 V
Length [mm]	560 mm
Width [mm]	24 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	FR4

Files to download

Datasheet-general

General terms and conditions of guarantee.pdf

DK250921_VA01_3D.step

Variants Linear Led Module 2 feet 560x24mm 12V LINNEA (14)


MOD-64R560x24-JB2835BJ-3580-VA01	2344 lm	3500 K	80	24 V	55 °C
MOD-64R560x24-JB2835BJ-3080-VA01	2266 lm	3000 K	80	24 V	55 °C
MOD-64R560x24-JB2835BJ-6580-VA01	2414 lm	6500 K	80	24 V	55 °C
MOD-64R560x24-JB2835BJ-2780-VA01	2180 lm	2700 K	80	24 V	55 °C
MOD-64R560x24-JB2835BJ-5090-VA01	2062 lm	5000 K	90	24 V	55 °C
MOD-64R560x24-JB2835BJ-6590-VA01	2062 lm	6500 K	90	24 V	55 °C
MOD-64R560x24-JB2835BJ-5790-VA01	2062 lm	5700 K	90	24 V	55 °C
MOD-64R560x24-JB2835BJ-5080-VA01	2414 lm	5000 K	80	24 V	55 °C
MOD-64R560x24-JB2835BJ-4080-VA01	2414 lm	4000 K	80	24 V	55 °C
MOD-64R560x24-JB2835BJ-4090-VA01	2062 lm	4000 K	90	24 V	55 °C
MOD-64R560x24-JB2835BJ-2790-VA01	1844 lm	2700 K	90	24 V	55 °C
MOD-64R560x24-JB2835BJ-3590-VA01	1992 lm	3500 K	90	24 V	55 °C

14 Variants
