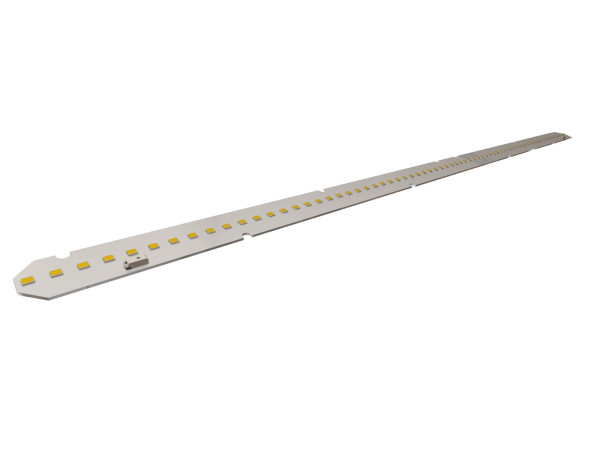

Linear Led Module 2 feet 560x20mm 36V LINNEA

Linear Led Module 2 feet 560x20mm 36V LINNEA

LINNEA 36V LED module with a length of 560 mm and width of 20 mm designed for linear lighting applications. Provides uniform light distribution, high energy efficiency, and reliable performance in industrial and commercial environments.

Max efficiency [lm/W]	204 lm/W
Voltage [Vf]	72 V

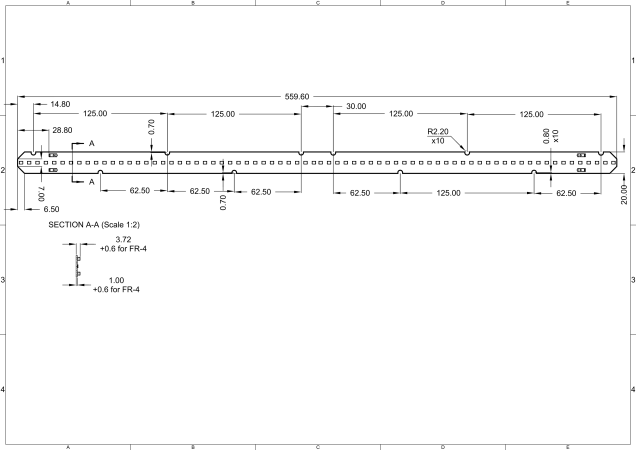

Length [mm]	560 mm
Width [mm]	20 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	FR4

Files to download

Datasheet-general

General terms and conditions of guarantee.pdf

DK250606_VA01_3D.step

Variants Linear Led Module 2 feet 560x20mm 36V LINNEA (14)


MOD-72R560x20-JB2835BJ-6590-VA01	2000 lm	6500 K	90	72 V	55 °C
MOD-72R560x20-JB2835BJ-5090-VA01	2000 lm	5000 K	90	72 V	55 °C
MOD-72R560x20-JB2835BJ-3590-VA01	1932 lm	3500 K	90	72 V	55 °C
MOD-72R560x20-JB2835BJ-3090-VA01	1870 lm	3000 K	90	72 V	55 °C
MOD-72R560x20-JB2835BJ-5790-VA01	2000 lm	5700 K	90	72 V	55 °C
MOD-72R560x20-JB2835BJ-4080-VA01	2338 lm	4000 K	80	72 V	55 °C
MOD-72R560x20-JB2835BJ-5780-VA01	2338 lm	5700 K	80	72 V	55 °C
MOD-72R560x20-JB2835BJ-3080-VA01	2196 lm	3000 K	80	72 V	55 °C
MOD-72R560x20-JB2835BJ-6580-VA01	2338 lm	6500 K	80	72 V	55 °C
MOD-72R560x20-JB2835BJ-2790-VA01	1788 lm	2700 K	90	72 V	55 °C
MOD-72R560x20-JB2835BJ-4090-VA01	2000 lm	4000 K	90	72 V	55 °C
MOD-72R560x20-JB2835BJ-5080-VA01	2338 lm	5000 K	80	72 V	55 °C

14 Variants
