Linear Led Module 2,5 feet 1400x20mm 36V LINNEA

Linear Led Module 2,5 feet 1400x20mm 36V LINNEA

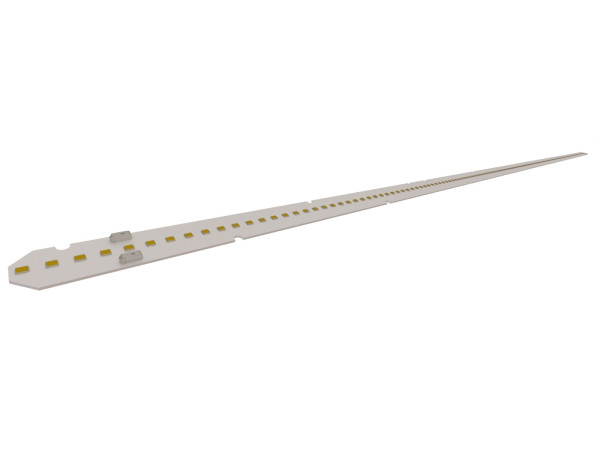

DK250914_MOD-180R1400x20 180V_36VperFT_VA01([No Variations])_3D.JPG

LINNEA 36V LED module with a length of 1400 mm and width of 20 mm for large lighting installations. Provides uniform light and high durability for professional use.

Max efficiency [lm/W]	204 lm/W
Voltage [Vf]	180 V
Length [mm]	1400 mm
Width [mm]	20 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	FR4

Files to download

Datasheet-general

General terms and conditions of guarantee.pdf

DK250914_VA01_3D.step

Variants Linear Led Module 2,5 feet 1400x20mm 36V LINNEA (14)


5000 lm	MOD-180R1400x20-JB2835BJ-6590-VA01	6500 K	90	180 V	55 °C
5000 lm	MOD-180R1400x20-JB2835BJ-5790-VA01	5700 K	90	180 V	55 °C
4830 lm	MOD-180R1400x20-JB2835BJ-3590-VA01	3500 K	90	180 V	55 °C
5000 lm	MOD-180R1400x20-JB2835BJ-5090-VA01	5000 K	90	180 V	55 °C
4470 lm	MOD-180R1400x20-JB2835BJ-2790-VA01	2700 K	90	180 V	55 °C
5000 lm	MOD-180R1400x20-JB2835BJ-4090-VA01	4000 K	90	180 V	55 °C
4675 lm	MOD-180R1400x20-JB2835BJ-3090-VA01	3000 K	90	180 V	55 °C
5845 lm	MOD-180R1400x20-JB2835BJ-5780-VA01	5700 K	80	180 V	55 °C
5845 lm	MOD-180R1400x20-JB2835BJ-6580-VA01	6500 K	80	180 V	55 °C
5845 lm	MOD-180R1400x20-JB2835BJ-5080-VA01	5000 K	80	180 V	55 °C
5845 lm	MOD-180R1400x20-JB2835BJ-4080-VA01	4000 K	80	180 V	55 °C
5490 lm	MOD-180R1400x20-JB2835BJ-3080-VA01	3000 K	80	180 V	55 °C

14 Variants
