Linear Led Module 1 feet 280x24mm 42V LINNEA

Linear Led Module 1 feet 280x24mm 42V LINNEA

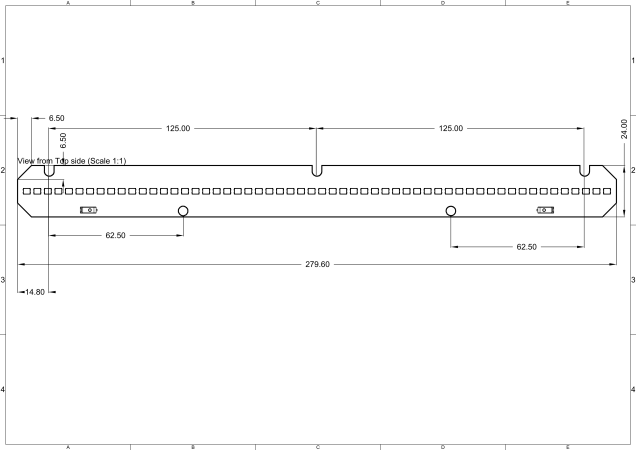

DK250928_MOD-56R280x24 42V(42Vper1FT)_VA01_3D.JPG

LINNEA 42V LED module with a length of 280 mm and width of 24 mm for advanced lighting systems. Offers high performance and operational stability.

Max efficiency [lm/W]	201 lm/W
Voltage [Vf]	42 V
Length [mm]	280 mm
Width [mm]	24 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	FR4

Files to download

Datasheet-general

General terms and conditions of guarantee.pdf

DK250928_VA01_3D.step

Variants Linear Led Module 1 feet 280x24mm 42V LINNEA (14)


MOD-56R280x24-JB2835BJ-4090-VA01	1805 lm	4000 K	90	42 V	55 °C
MOD-56R280x24-JB2835BJ-6580-VA01	2111 lm	6500 K	80	42 V	55 °C
MOD-56R280x24-JB2835BJ-5790-VA01	1805 lm	5700 K	90	42 V	55 °C
MOD-56R280x24-JB2835BJ-5780-VA01	2111 lm	5700 K	80	42 V	55 °C
MOD-56R280x24-JB2835BJ-6590-VA01	1805 lm	6500 K	90	42 V	55 °C
MOD-56R280x24-JB2835BJ-5090-VA01	1805 lm	5000 K	90	42 V	55 °C
MOD-56R280x24-JB2835BJ-3590-VA01	1744 lm	3500 K	90	42 V	55 °C
MOD-56R280x24-JB2835BJ-2790-VA01	1614 lm	2700 K	90	42 V	55 °C
MOD-56R280x24-JB2835BJ-3580-VA01	2050 lm	3500 K	80	42 V	55 °C
MOD-56R280x24-JB2835BJ-3090-VA01	1689 lm	3000 K	90	42 V	55 °C
MOD-56R280x24-JB2835BJ-5080-VA01	2111 lm	5000 K	80	42 V	55 °C
MOD-56R280x24-JB2835BJ-4080-VA01	2111 lm	4000 K	80	42 V	55 °C

14 Variants
