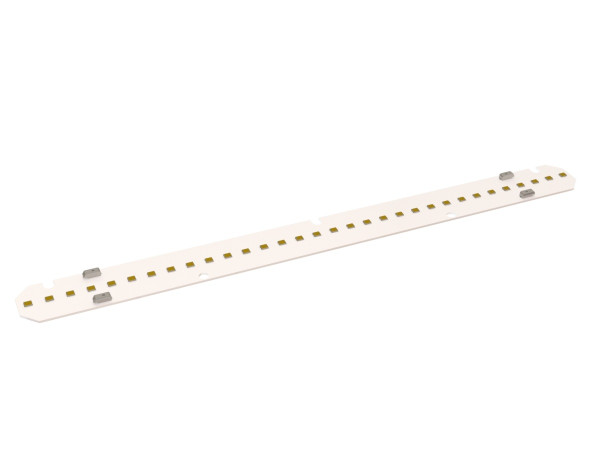

Linear Led Module 1 feet 280x24mm 12V LINNEA

Linear Led Module 1 feet 280x24mm 12V LINNEA


LINNEA 12V LED module with a length of 280 mm and width of 24 mm for applications requiring a wider light surface. Provides uniform illumination and reliability.

Max efficiency [lm/W]	201 lm/W
Voltage [Vf]	12 V
Length [mm]	280 mm
Width [mm]	24 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	FR4

Files to download

Datasheet-general

General terms and conditions of guarantee.pdf

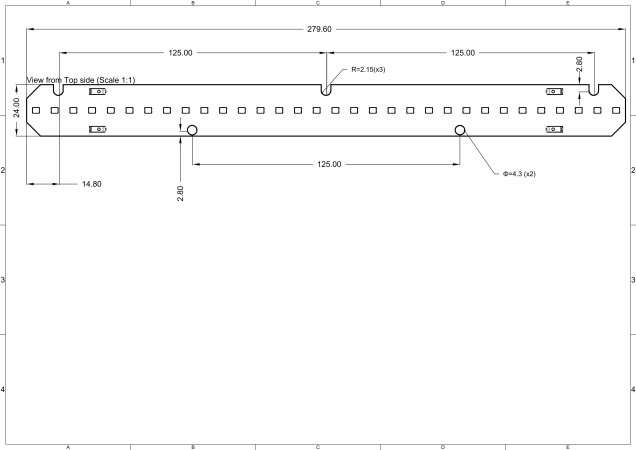

DK250920_VA01_3D.step

Variants Linear Led Module 1 feet 280x24mm 12V LINNEA (14)


MOD-32R280x24-JB2835BJ-3590-VA01	996 lm	3500 K	90	12 V	55 °C
MOD-32R280x24-JB2835BJ-6590-VA01	1031 lm	6500 K	90	12 V	55 °C
MOD-32R280x24-JB2835BJ-5790-VA01	1031 lm	5700 K	90	12 V	55 °C
MOD-32R280x24-JB2835BJ-5090-VA01	1031 lm	5000 K	90	12 V	55 °C
MOD-32R280x24-JB2835BJ-4090-VA01	1031 lm	4000 K	90	12 V	55 °C
MOD-32R280x24-JB2835BJ-3090-VA01	965 lm	3000 K	90	12 V	55 °C
MOD-32R280x24-JB2835BJ-6580-VA01	1207 lm	6500 K	80	12 V	55 °C
MOD-32R280x24-JB2835BJ-2790-VA01	922 lm	2700 K	90	12 V	55 °C
MOD-32R280x24-JB2835BJ-5780-VA01	1207 lm	5700 K	80	12 V	55 °C
MOD-32R280x24-JB2835BJ-4080-VA01	1207 lm	4000 K	80	12 V	55 °C
MOD-32R280x24-JB2835BJ-5080-VA01	1207 lm	5000 K	80	12 V	55 °C
MOD-32R280x24-JB2835BJ-3580-VA01	1172 lm	3500 K	80	12 V	55 °C

14 Variants
