Linear Led Module 1 feet 280x20mm 36V LINNEA

Linear Led Module 1 feet 280x20mm 36V LINNEA

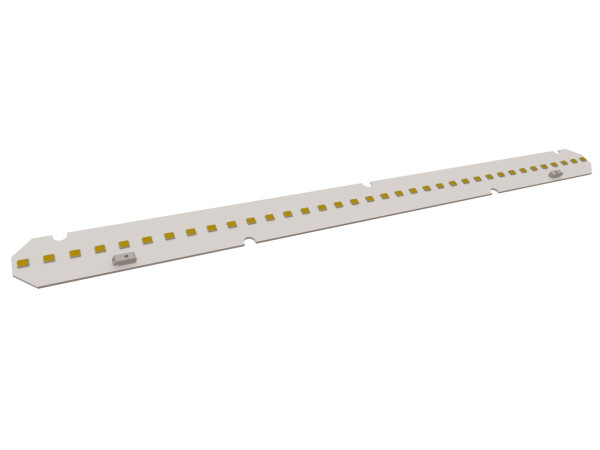

LINNEA 36V LED module with a length of 280 mm and width of 20 mm for compact linear lighting systems. Ensures stable light output, energy efficiency, and easy integration into luminaires.

Max efficiency [lm/W]	204 lm/W
Voltage [Vf]	36 V

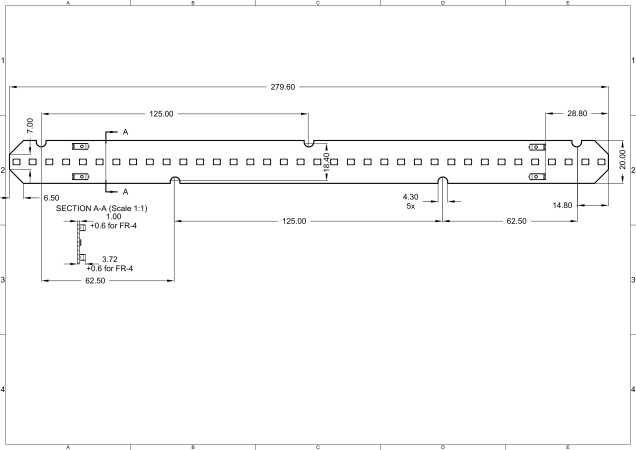

Length [mm]	280 mm
Width [mm]	20 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	FR4

Files to download

Datasheet-general

General terms and conditions of guarantee.pdf

DK250605_VA01_3D.step

Variants Linear Led Module 1 feet 280x20mm 36V LINNEA (14)


MOD-36R280x20-JB2835BJ-3090-VA01	935 lm	3000 K	90	36 V	55 °C
MOD-36R280x20-JB2835BJ-5790-VA01	1000 lm	5700 K	90	36 V	55 °C
MOD-36R280x20-JB2835BJ-3590-VA01	966 lm	3500 K	90	36 V	55 °C
MOD-36R280x20-JB2835BJ-6590-VA01	1000 lm	6500 K	90	36 V	55 °C
MOD-36R280x20-JB2835BJ-4090-VA01	1000 lm	4000 K	90	36 V	55 °C
MOD-36R280x20-JB2835BJ-5780-VA01	1169 lm	5700 K	80	36 V	55 °C
MOD-36R280x20-JB2835BJ-6580-VA01	1169 lm	6500 K	80	36 V	55 °C
MOD-36R280x20-JB2835BJ-2790-VA01	894 lm	2700 K	90	36 V	55 °C
MOD-36R280x20-JB2835BJ-5080-VA01	1169 lm	5000 K	80	36 V	55 °C
MOD-36R280x20-JB2835BJ-5090-VA01	1000 lm	5000 K	90	36 V	55 °C
MOD-36R280x20-JB2835BJ-2780-VA01	1056 lm	2700 K	80	36 V	55 °C
MOD-36R280x20-JB2835BJ-3580-VA01	1135 lm	3500 K	80	36 V	55 °C

14 Variants
