Linear Led Module 1 feet 280x20mm 24V LINNEA

Linear Led Module 1 feet 280x20mm 24V LINNEA

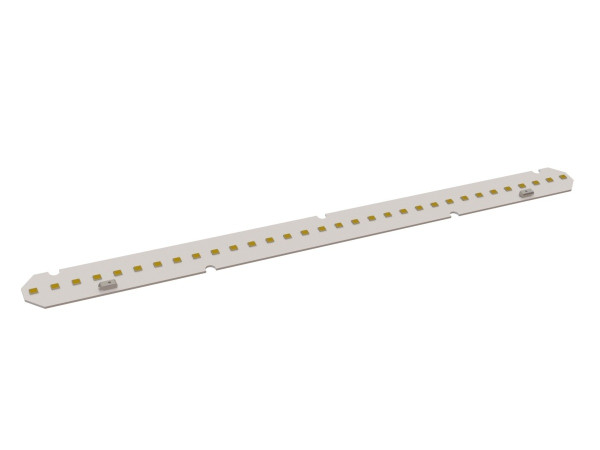

DK250926_MOD-32R280x20 24V(24Vper1FT)_VA01_3D.JPG

LINNEA 24V LED module with a length of 280 mm and width of 20 mm for versatile linear lighting applications. Ensures stable light output and high efficiency.

Max efficiency [lm/W]	201 lm/W
Voltage [Vf]	24 V
Length [mm]	280 mm
Width [mm]	20 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	FR4

Files to download

Datasheet-general

General terms and conditions of guarantee.pdf

DK250926_VA01_3D.step

Variants Linear Led Module 1 feet 280x20mm 24V LINNEA (14)


1031 lm	MOD-32R280x20-JB2835BJ-6590-VA01	6500 K	90	24 V	55 °C
1031 lm	MOD-32R280x20-JB2835BJ-4090-VA01	4000 K	90	24 V	55 °C
965 lm	MOD-32R280x20-JB2835BJ-3090-VA01	3000 K	90	24 V	55 °C
1031 lm	MOD-32R280x20-JB2835BJ-5090-VA01	5000 K	90	24 V	55 °C
1207 lm	MOD-32R280x20-JB2835BJ-6580-VA01	6500 K	80	24 V	55 °C
1031 lm	MOD-32R280x20-JB2835BJ-5790-VA01	5700 K	90	24 V	55 °C
1207 lm	MOD-32R280x20-JB2835BJ-5780-VA01	5700 K	80	24 V	55 °C
996 lm	MOD-32R280x20-JB2835BJ-3590-VA01	3500 K	90	24 V	55 °C
922 lm	MOD-32R280x20-JB2835BJ-2790-VA01	2700 K	90	24 V	55 °C
1207 lm	MOD-32R280x20-JB2835BJ-5080-VA01	5000 K	80	24 V	55 °C
1207 lm	MOD-32R280x20-JB2835BJ-4080-VA01	4000 K	80	24 V	55 °C
1172 lm	MOD-32R280x20-JB2835BJ-3580-VA01	3500 K	80	24 V	55 °C

14 Variants
