Linear Led Module 0,5 feet 140x20mm 36V LINNEA

Linear Led Module 0,5 feet 140x20mm 36V LINNEA

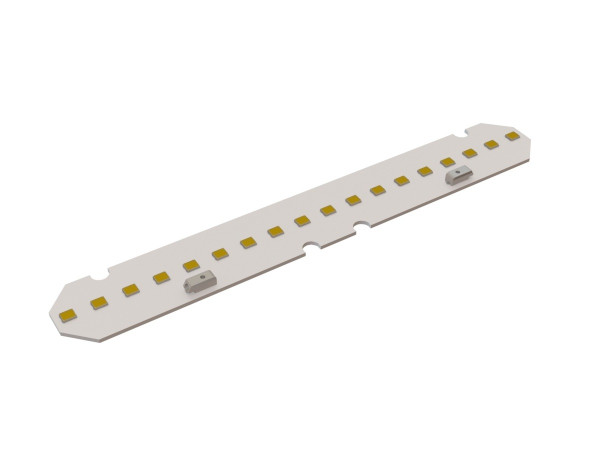

DK250912_MOD-18R140x20 18V_36VperFT_VA01([No Variations])_3D.JPG

LINNEA 36V LED module with a length of 140 mm and width of 20 mm for compact linear installations. Features uniform lighting, high efficiency, and reliable operation.

Max efficiency [lm/W]	204 lm/W
Voltage [Vf]	18 V
Length [mm]	140 mm
Width [mm]	20 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	FR4

Files to download

Datasheet-general

General terms and conditions of guarantee.pdf

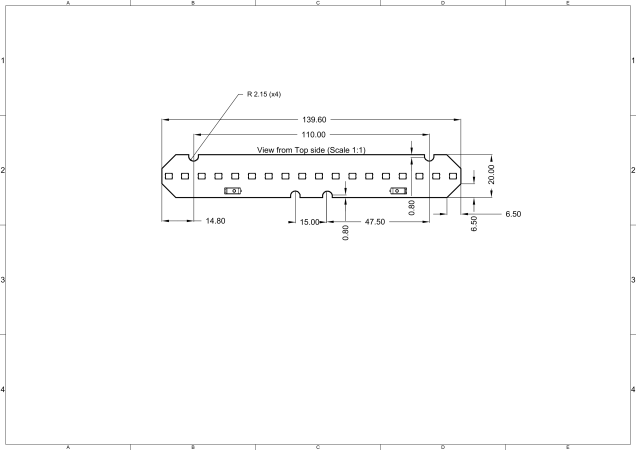

DK250912_VA01_3D.step

Variants Linear Led Module 0,5 feet 140x20mm 36V LINNEA (14)


MOD-18R140x20-JB2835BJ-3590-VA01	483 lm	3500 K	90	18 V	55 °C
MOD-18R140x20-JB2835BJ-5090-VA01	500 lm	5000 K	90	18 V	55 °C
MOD-18R140x20-JB2835BJ-5790-VA01	500 lm	5700 K	90	18 V	55 °C
MOD-18R140x20-JB2835BJ-4090-VA01	500 lm	4000 K	90	18 V	55 °C
MOD-18R140x20-JB2835BJ-3090-VA01	467 lm	3000 K	90	18 V	55 °C
MOD-18R140x20-JB2835BJ-2780-VA01	528 lm	2700 K	80	18 V	55 °C
MOD-18R140x20-JB2835BJ-6590-VA01	500 lm	6500 K	90	18 V	55 °C
MOD-18R140x20-JB2835BJ-2790-VA01	447 lm	2700 K	90	18 V	55 °C
MOD-18R140x20-JB2835BJ-3080-VA01	594 lm	3000 K	80	18 V	55 °C
MOD-18R140x20-JB2835BJ-5080-VA01	584 lm	5000 K	80	18 V	55 °C
MOD-18R140x20-JB2835BJ-4080-VA01	584 lm	4000 K	80	18 V	55 °C
MOD-18R140x20-JB2835BJ-6580-VA01	584 lm	6500 K	80	18 V	55 °C

14 Variants
