Linear Led Module 0,25 feet 70x24mm 12V LINNEA

Linear Led Module 0,25 feet 70x24mm 12V LINNEA

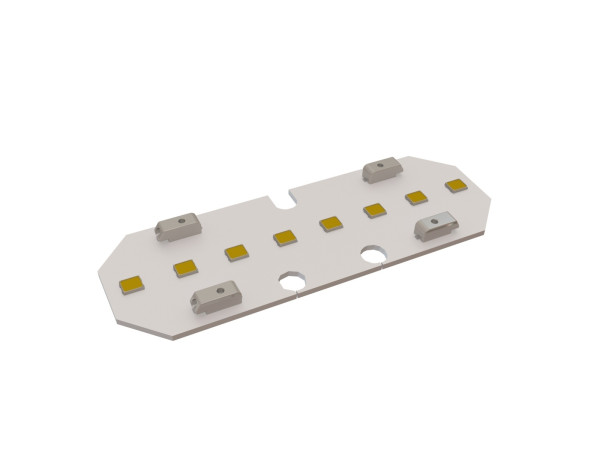

DK250918_MOD-8R70x24 3V_12VperFT_VA01_3D.JPG

LINNEA 12V LED module with a length of 70 mm and width of 24 mm for ultra-compact installations. Offers precise illumination and high energy efficiency.

Max efficiency [lm/W]	201 lm/W
Voltage [Vf]	3 V

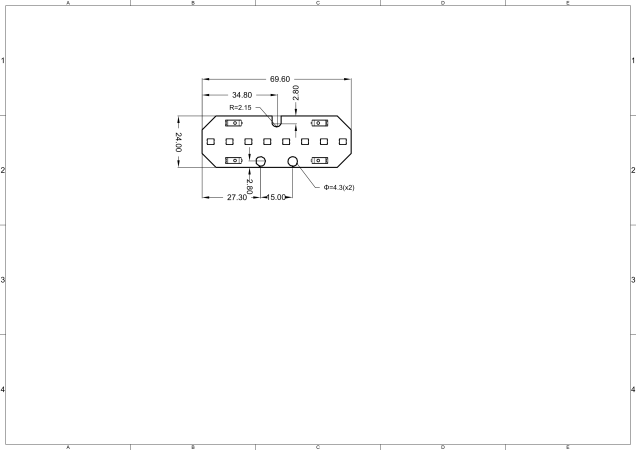

Length [mm]	70 mm
Width [mm]	24 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	FR4

Files to download

Datasheet-general

General terms and conditions of guarantee.pdf

DK250918_VA01_3D.step

Variants Linear Led Module 0,25 feet 70x24mm 12V LINNEA (14)


258 lm	MOD-8R70x24-JB2835BJ-4090-VA01	4000 K	90	3 V	55 °C
258 lm	MOD-8R70x24-JB2835BJ-6590-VA01	6500 K	90	3 V	55 °C
231 lm	MOD-8R70x24-JB2835BJ-2790-VA01	2700 K	90	3 V	55 °C
258 lm	MOD-8R70x24-JB2835BJ-5790-VA01	5700 K	90	3 V	55 °C
258 lm	MOD-8R70x24-JB2835BJ-5090-VA01	5000 K	90	3 V	55 °C
241 lm	MOD-8R70x24-JB2835BJ-3090-VA01	3000 K	90	3 V	55 °C
249 lm	MOD-8R70x24-JB2835BJ-3590-VA01	3500 K	90	3 V	55 °C
302 lm	MOD-8R70x24-JB2835BJ-5780-VA01	5700 K	80	3 V	55 °C
302 lm	MOD-8R70x24-JB2835BJ-6580-VA01	6500 K	80	3 V	55 °C
302 lm	MOD-8R70x24-JB2835BJ-4080-VA01	4000 K	80	3 V	55 °C
273 lm	MOD-8R70x24-JB2835BJ-2780-VA01	2700 K	80	3 V	55 °C
274 lm	MOD-8R70x24-JB2835BJ-3080-VA01	3000 K	80	3 V	55 °C

14 Variants
