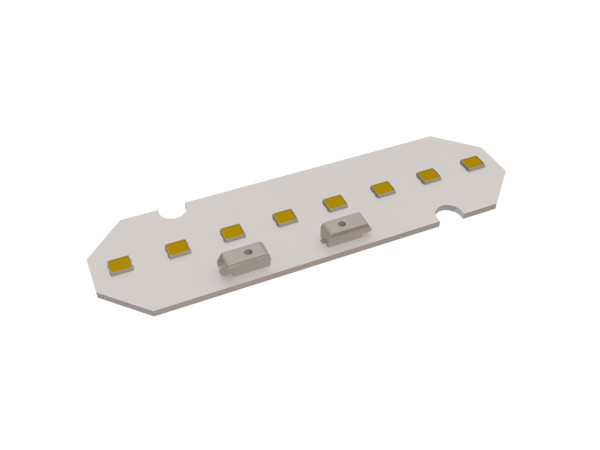

Linear Led Module 0,25 feet 70x20mm 24V LINNEA

Linear Led Module 0,25 feet 70x20mm 24V LINNEA

LINNEA 24V LED module with a length of 70 mm and width of 20 mm for precision applications. Combines compact size, high efficiency, and consistent lighting.

Max efficiency [lm/W]	201 lm/W
Voltage [Vf]	6 V
Length [mm]	70 mm
Width [mm]	20 mm
Color temp [K]	2700-6500K
CRI/RA	80/90
PCB Material	FR4

Files to download

Datasheet-general

General terms and conditions of guarantee.pdf

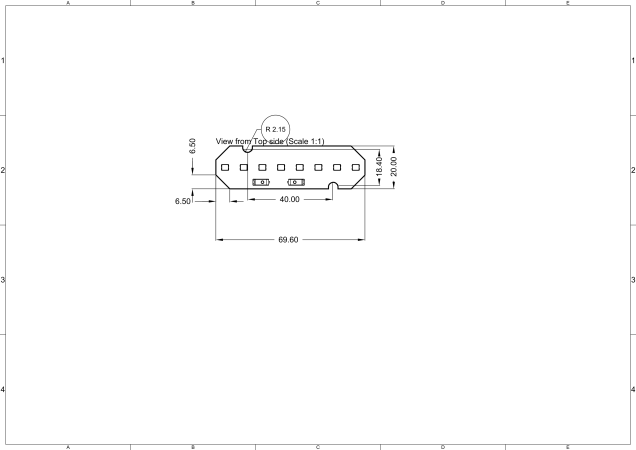

DK250924_VA01_3D.step

Variants Linear Led Module 0,25 feet 70x20mm 24V LINNEA (14)


258 lm	MOD-8R70x20-JB2835BJ-6590-VA01	6500 K	90	6 V	55 °C
258 lm	MOD-8R70x20-JB2835BJ-5790-VA01	5700 K	90	6 V	55 °C
274 lm	MOD-8R70x20-JB2835BJ-3080-VA01	3000 K	80	6 V	55 °C
231 lm	MOD-8R70x20-JB2835BJ-2790-VA01	2700 K	90	6 V	55 °C
290 lm	MOD-8R70x20-JB2835BJ-3580-VA01	3500 K	80	6 V	55 °C
258 lm	MOD-8R70x20-JB2835BJ-4090-VA01	4000 K	90	6 V	55 °C
258 lm	MOD-8R70x20-JB2835BJ-5090-VA01	5000 K	90	6 V	55 °C
241 lm	MOD-8R70x20-JB2835BJ-3090-VA01	3000 K	90	6 V	55 °C
302 lm	MOD-8R70x20-JB2835BJ-5080-VA01	5000 K	80	6 V	55 °C
302 lm	MOD-8R70x20-JB2835BJ-6580-VA01	6500 K	80	6 V	55 °C
249 lm	MOD-8R70x20-JB2835BJ-3590-VA01	3500 K	90	6 V	55 °C
302 lm	MOD-8R70x20-JB2835BJ-5780-VA01	5700 K	80	6 V	55 °C

14 Variants
