Ground Standard Premium 220-240V AC 50/60Hz
GROUND STANDARD PREMIUM 220-240V AC 50/60Hz

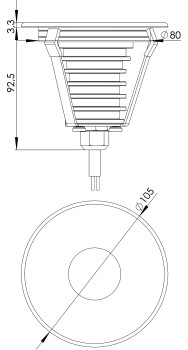

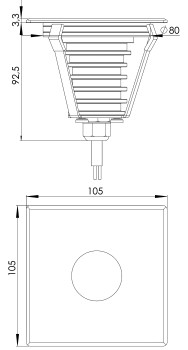

Technical drawings
The Ground Premium series of max 7W is designed to achieve the best visual effect by having no screws on the front. Made of the highest quality materials such as marine steel, high purity glass and modern CREE LEDs. Niviss Ground Standard Premium luminaire can be used to illuminate many places and objects, such as parks, gardens, terraces, squares, premises, plants.
| Housing | SS316LAluminum |
|---|---|
| Glass type | Tempered |
| Working temperature range | -20˚C ÷ +55˚C |
| IP protection class | IP67 |
| Lifetime L80B10 | ≥ 60 000h |
| Impact resistance | IK10 |
| Protection class | I |
| Connection | 0.5m |
| Wiring | H07RN-F 3G1 |
| Dimming | ON-OFF |
| Light emission | direct |
| Colour rendering index | ≥80 |
| SDCM colour tolerance | <3 |
| Luminous flux tolerance | ±10% |
| Power supplies | inside the luminaire |
| Light distribution | symmetrical |
| Nominal voltage [V] | 220-240V AC 50/60Hz |
| Rated power [W] | 7 |
| Light source | LED |
| Angle of distribution | 10˚, 20˚, 45˚ |
