Ground Standard Asymmetric 12V/24V DC
GROUND STANDARD ASYMMETRIC 12V/24V DC
Technical drawings

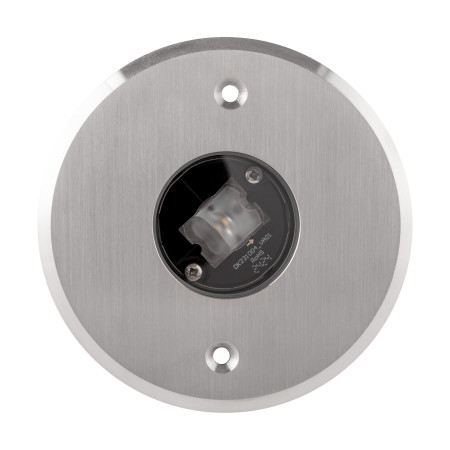

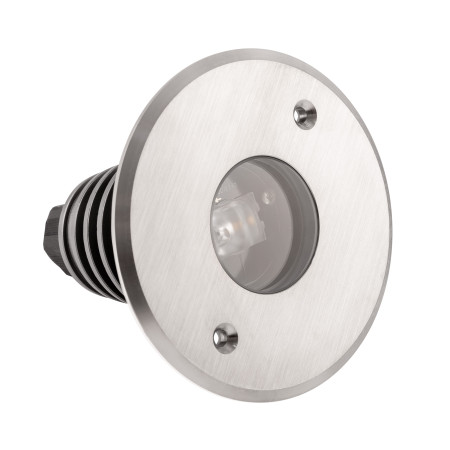

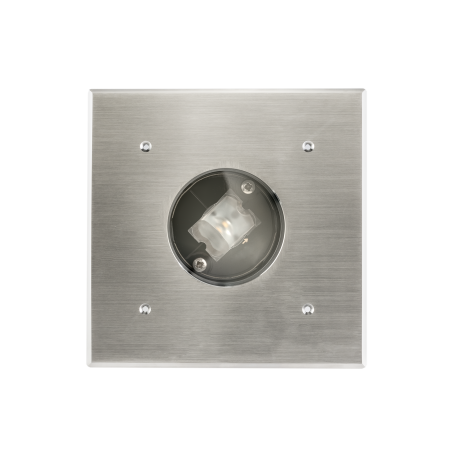

The Niviss Ground Standard Asymmetric max 6W is designed for the most demanding customers who expect a beautiful finish beyond the front. It has an SS316L stainless steel or aluminum body and is IP67-rated. Niviss Ground Standard luminaire can be used to illuminate a wide range of places and objects, such as parks, gardens, terraces, squares, premises, swimming pools.
| Housing | SS316LAluminum |
|---|---|
| Glass type | Tempered |
| Working temperature range | -20˚C ÷ +55˚C |
| IP protection class | IP67 |
| Lifetime L80B10 | ≥ 60 000h |
| Impact resistance | IK10 |
| Protection class | III |
| Connection | 0.5m |
| Wiring | H07RN-F 2X1.5 |
| Dimming | ON-OFF/PWM |
| Light emission | indirect |
| Colour rendering index | ≥80 |
| SDCM colour tolerance | <3 |
| Luminous flux tolerance | ±10% |
| Power supplies | apart from the luminaireordered separately |
| Light distribution | asymmetrical |
| Nominal voltage [V] | 12V/24V DC |
| Rated power [W] | 6 |
| Light source | LED |
| Angle of distribution | Asymmetric |
