GROUND STANDARD 12V/24V DC
Technical drawings

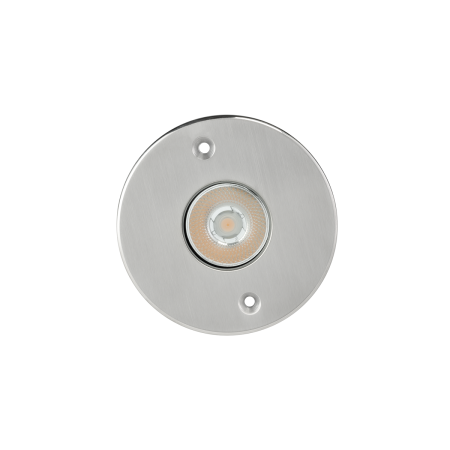

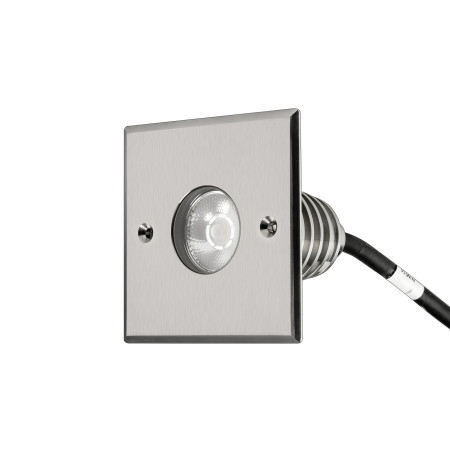

The NIVISS GROUND STANDARD is an outdoor ground luminaire crafted for durability and refined design. Based on CREE LED's With an IP67 rating, it offers full protection against dust and water, ensuring reliable operation even in demanding environments. It can be manufactured entirely from SS316L stainless steel for maximum resistance to corrosion and harsh weather, or with an SS316L stainless steel front combined with an aluminium body for a lightweight, cost-effective solution with excellent thermal performance. Thanks to its high-quality materials and precise engineering, the NIVISS GROUND STANDARD delivers long-lasting reliability while adding a sleek architectural accent to pathways, terraces, gardens, driveways, and public spaces.
Housing | SS316LAluminum |
---|---|
Glass type | Tempered |
Working temperature range | -20˚C ÷ +55˚C |
IP protection class | IP67 |
Lifetime L80B10 | ≥ 60 000h |
Impact resistance | IK10 |
Protection class | III |
Connection | 0.5m |
Wiring | H07RN-F 2X1.5 |
Dimming | ON-OFF/PWM |
Light emission | direct |
Colour rendering index | ≥80 |
SDCM colour tolerance | <3 |
Luminous flux tolerance | ±10% |
Power supplies | apart from the luminaireordered separately |
Light distribution | symmetrical |
Nominal voltage [V] | 12V/24V DC |
Rated power [W] | 6 |
Light source | LED |
Angle of distribution | 10˚, 20˚ |
