GROUND MICRO

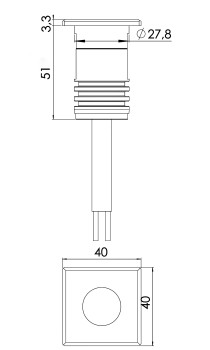

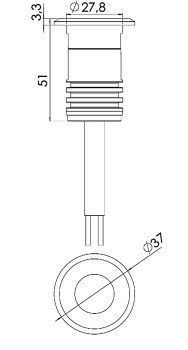

Technical drawings
| Housing | SS316L, Brass |
|---|---|
| Rated power [W] | 2 |
| Light source | LED |
| Lumen output [lm] | |
| Luminous flux tolerance | 10% |
| SDCM colour tolerance | <3 |
| Light distribution / Emission | direct |
| Angle of distribution | 17, 31, 39 |
| IP protection class | IP67 |
| Impact resistance | IK10 |
| Working temperature range | -20°C ÷ +55°C |
| Lifetime L80B10 | 60 000h |
| Protection class | III |
| Wiring | H07RN-F 2X1.5 |
| Connection | 0.5m |
| Dimming | ON-OFF |
| Power supplies | built-in |
| Dimensions | Dia: 37mm / L: 40mm x H: 51mm x W: 40mm |
| Load [KG] | 120 KG |
| Power supply type | 12-24V DC |
| CRI | 80 |
Variants
GROUND MICRO
(45)
 | GROUND-MICRO-2-AW-17-RD-BB-LV | 2 | 2200K | 90 | 12-24V DC | 17 | Brass | Brass | ON-OFF | |
 | GROUND-MICRO-2-AW-17-RD-SS-LV | 2 | 2200K | 90 | 12-24V DC | 17 | SS316L | SS316L | ON-OFF | |
 | GROUND-MICRO-2-AW-17-SQ-SS-LV | 2 | 2200K | 90 | 12-24V DC | 17 | SS316L | SS316L | ON-OFF | |
| GROUND-MICRO-2-AW-31-RD-BB-LV | 2 | 2200K | 90 | 12-24V DC | 31 | Brass | Brass | ON-OFF | |
| GROUND-MICRO-2-AW-31-RD-SS-LV | 2 | 2200K | 90 | 12-24V DC | 31 | SS316L | SS316L | ON-OFF | |
| GROUND-MICRO-2-AW-31-SQ-SS-LV | 2 | 2200K | 90 | 12-24V DC | 31 | SS316L | SS316L | ON-OFF | |
| GROUND-MICRO-2-AW-39-RD-BB-LV | 2 | 2200K | 90 | 12-24V DC | 39 | Brass | Brass | ON-OFF | |
| GROUND-MICRO-2-AW-39-RD-SS-LV | 2 | 2200K | 90 | 12-24V DC | 39 | SS316L | SS316L | ON-OFF | |
| GROUND-MICRO-2-AW-39-SQ-SS-LV | 2 | 2200K | 90 | 12-24V DC | 39 | SS316L | SS316L | ON-OFF | |
| GROUND-MICRO-2-CW-17-RD-BB-LV | 2 | 6000K | 80 | 12-24V DC | 17 | Brass | Brass | ON-OFF | |
| GROUND-MICRO-2-CW-17-RD-SS-LV | 2 | 6000K | 80 | 12-24V DC | 17 | SS316L | SS316L | ON-OFF | |
| GROUND-MICRO-2-CW-17-SQ-SS-LV | 2 | 6000K | 80 | 12-24V DC | 17 | SS316L | SS316L | ON-OFF |
45 Variants
