GROUND MEDIUM RGBW 12V/24V DC

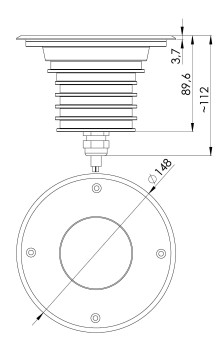

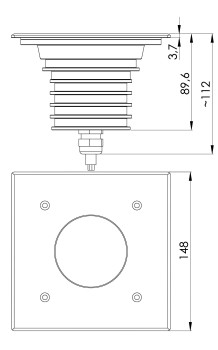

Technical drawings
The Ground Medium RGBW series has been designed using modern simulation methods to achieve the highest quality product. These luminaires are made of the highest quality materials such as marine steel, high purity glass for optical applications and state-of-the-art CREE LEDs. Niviss Ground Medium RGBW can be used to illuminate a wide range of places and facilities, such as parks, gardens, terraces, squares, and premises.
Housing | SS316LAluminum |
---|---|
Glass type | Tempered |
Working temperature range | -20˚C ÷ +55˚C |
IP protection class | IP67 |
Lifetime L80B10 | ≥ 65 000h |
Impact resistance | IK10 |
Protection class | III |
Connection | 0.5m |
Wiring | JZ-600 5G1 |
Dimming | ON-OFF/PWM |
Light emission | direct |
Luminous flux tolerance | ±10% |
Power supplies | apart from the luminaireordered separately |
Light distribution | symmetrical |
Nominal voltage [V] | 12V/24V DC |
Rated power [W] | 24.25 |
Light source | LED |
Angle of distribution | 15˚, 30˚ |
