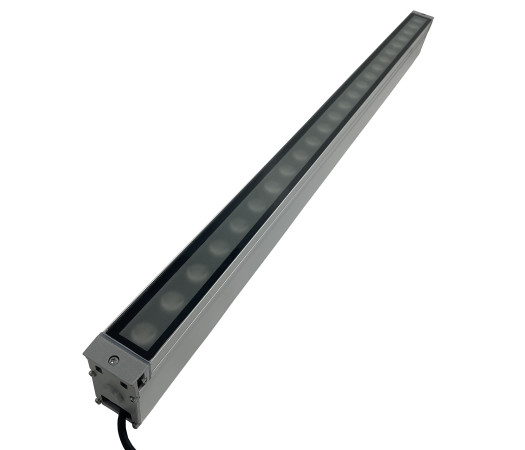

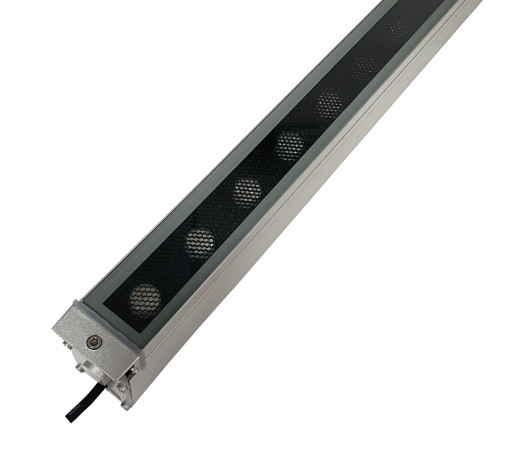

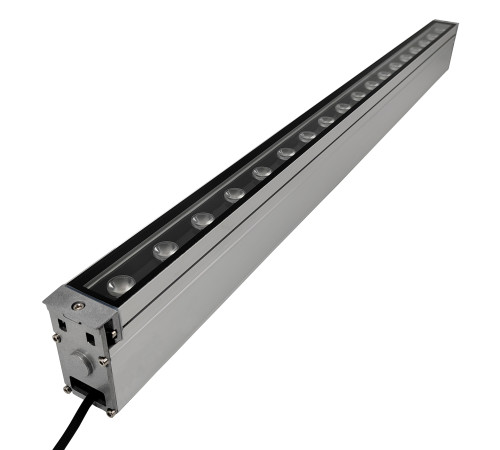

GROUND LINEAR 12V/24V DC
Technical drawings
The Ground Linear series has been designed using modern simulation methods to achieve the highest product quality. Product based on LEDs from the renowned American company CREE. Power 20W/40W. Niviss Ground Linear luminaires can be used for lighting and illuminating many places and objects, such as parks, gardens, monuments, squares, among others.
| Housing | Aluminum |
|---|---|
| Glass type | Tempered | Tempered with anti-scratch coating |
| Light source | LED |
| Luminous flux tolerance | 10% |
| SDCM colour tolerance | <3 |
| Light distribution | symmetrical/asymmetrical |
| IP protection class | IP67 |
| Impact resistance | IK10 |
| Working temperature range | (-20°C ÷ +55°C) |
| Lifetime L80B10 | ≥ 60 000h |
| Protection class | III |
| Wiring | H05RN-F 2X0.5 |
| Connection | 0.2m |
| Dimming | PWM, ON-OFF |
| Power supplies | inside the luminaire |
| Angle of distribution | 10˚, 20˚, 30˚, 45˚ |
| Rated power [W] | 20 |
| Nominal voltage [V] | 12V/24V DC |
| Colour rendering index (CRI) | ≥80 |
| Angle of distribution | 10, 40, AS, EL |
| Light emission | direct |
