Ground Linear 220-240V AC 50HZ
GROUND LINEAR 220-240V AC 50/60Hz

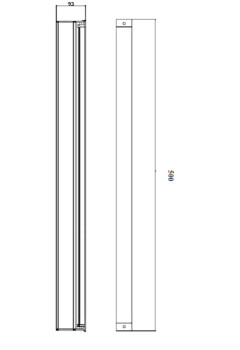

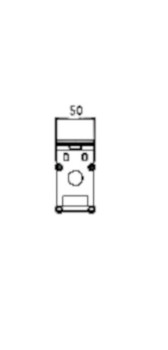

Technical drawings

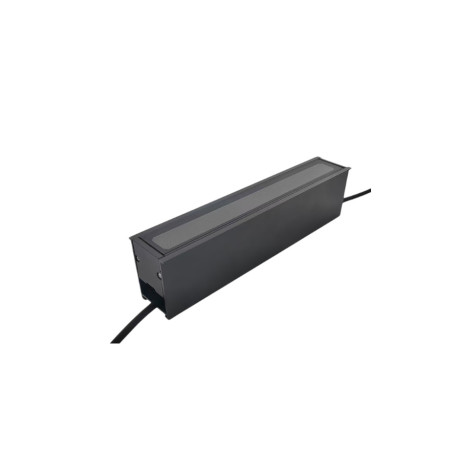

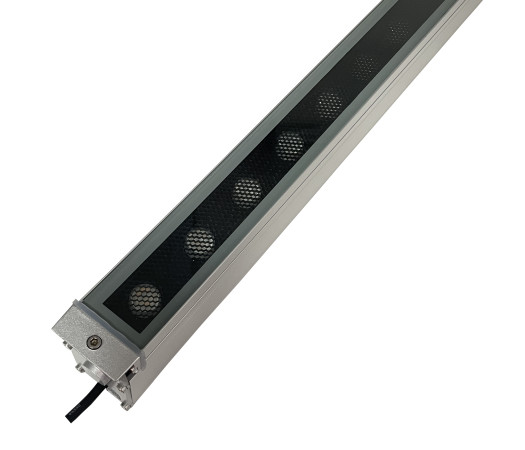

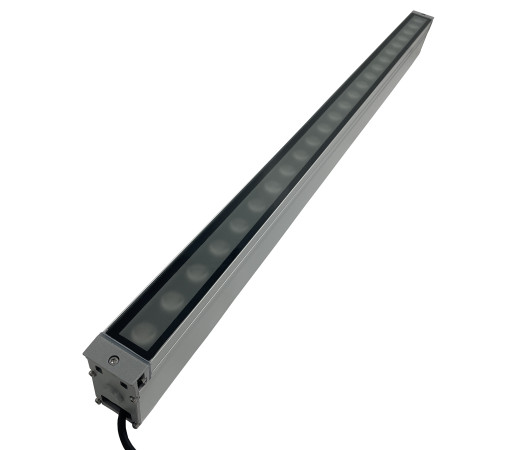

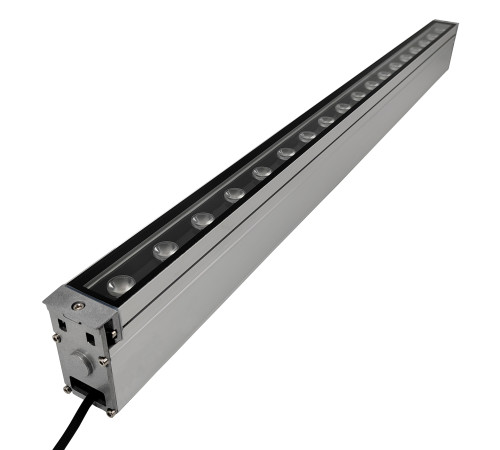

The Ground Linear series has been designed using modern simulation methods to achieve the highest product quality. Product based on LEDs from the renowned American company CREE. Power 20W. Niviss Ground Linear luminaires can be used for lighting and illuminating many places and objects, such as parks, gardens, monuments, squares, fountains, among others.
| Housing | Aluminum |
|---|---|
| Glass type | Tempered | Tempered with anti-scratch coating |
| Working temperature range | -20˚C ÷ +55˚C |
| IP protection class | IP65 |
| Lifetime L80B10 | ≥ 60 000h |
| Impact resistance | IK10 |
| Protection class | I |
| Connection | 0.2m |
| Wiring | H05RN-F 2X0.5 |
| Dimming | PWM, ON-OFF |
| Light emission | direct |
| Colour rendering index | ≥80 |
| SDCM colour tolerance | <3 |
| Luminous flux tolerance | ±10% |
| Power supplies | inside the luminaire |
| Light distribution | symmetrical/asymmetrical |
| Nominal voltage [V] | 220-240V AC 50/60Hz |
| Rated power [W] | 20 |
| Light source | LED |
| Angle of distribution | 10˚, 20˚, 30˚, 45˚ |
