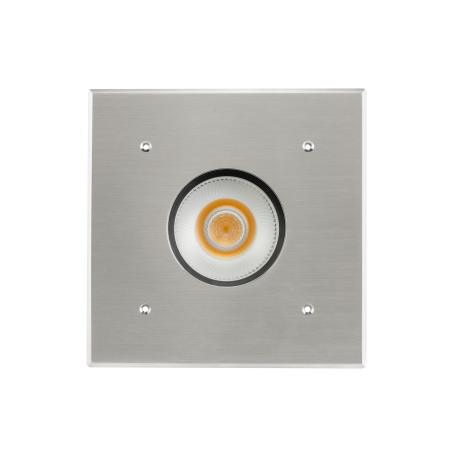

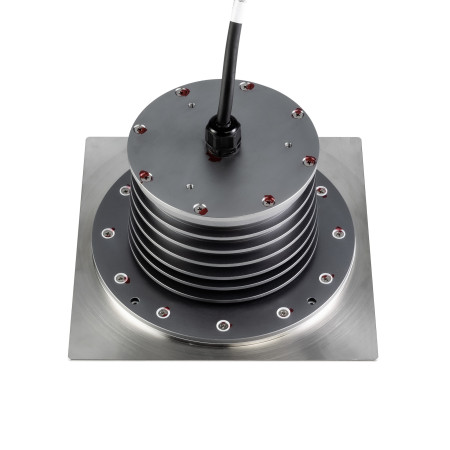

Ground Big RGBW 12V/24V DC
GROUND BIG RGBW 12V/24V DC
Technical drawings
The Ground Big RGBW series has been designed using modern simulation methods to achieve the highest quality product. These luminaires are made of the highest quality materials, such as marine steel, high purity glass for optical applications, and modern CREE LEDs. Niviss Ground Big RGBW can be used to illuminate a wide range of places and facilities, such as parks, gardens, terraces, squares, and premises.
| Housing | SS316LAluminum |
|---|---|
| Glass type | Tempered |
| Rated power [W] | 40 |
| Nominal voltage [V] | 12V/24V DC |
| Light source | LED |
| Lumen output [lm] | |
| Luminous flux tolerance | ±10% |
| Light distribution | symmetrical |
| Angle of distribution | 24˚,38˚ |
| IP protection class | IP67 |
| Impact resistance | IK10 |
| Working temperature range | -20˚C ÷ +55˚C |
| Lifetime L80B10 | ≥ 65 000h |
| Protection class | III |
| Wiring | JZ-600 5G1 |
| Connection | 0.5m |
| Dimming | ON-OFF/PWM |
| Power supplies | apart from the luminaireordered separately |
| Light emission | direct |
