Ground Big Premium 12V/24V DC
GROUND BIG PREMIUM 12V/24V DC

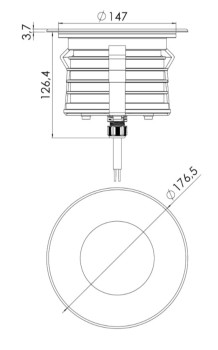

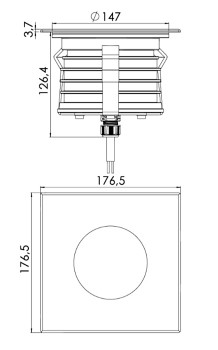

Technical drawings
The Ground Big Premium series of 30W max is designed to achieve the best visual effect by having no screws on the front. The lamps are made of the highest quality materials, such as marine steel, high purity glass and modern CREE LEDs. Niviss Ground Big Premium fixture can be used to illuminate many places and objects, such as parks, gardens, plazas, premises, plants, outdoor walls.
| Housing | SS316LAluminum |
|---|---|
| Glass type | Tempered |
| Rated power [W] | 30 |
| Nominal voltage [V] | 12V/24V DC |
| Light source | LED |
| Lumen output [lm] | 3850 |
| Luminous flux tolerance | ±10% |
| Colour rendering index (CRI) | ≥80 |
| SDCM colour tolerance | <3 |
| Light distribution | symmetrical |
| Angle of distribution | 20˚, 30˚ |
| IP protection class | IP67 |
| Impact resistance | IK10 |
| Working temperature range | -20˚C ÷ +55˚C |
| Lifetime L80B10 | ≥ 60 000h |
| Protection class | III |
| Wiring | H07RN-F 2X1.5 |
| Connection | 0.5m |
| Dimming | ON-OFF/PWM |
| Power supplies | apart from the luminaireordered separately |
| Light emission | direct |
