ES111
Technical drawings

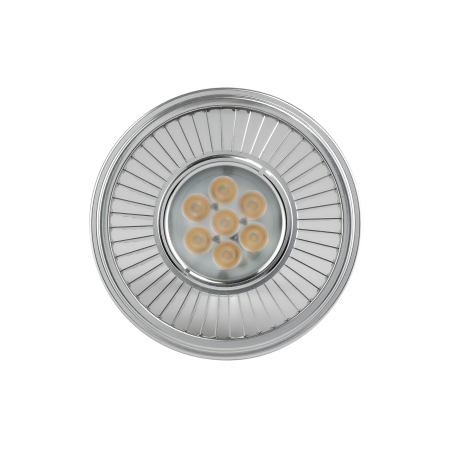

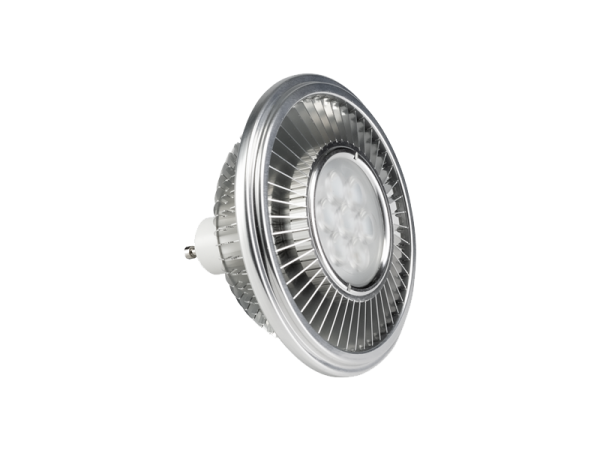

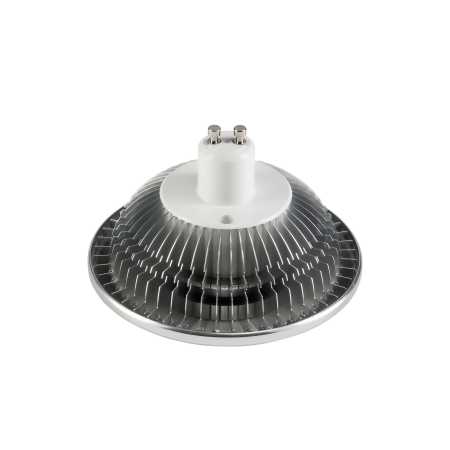

The efficient Niviss ES111 high-voltage reflector is ideal for replacing halogen lamps. Niviss ES111 is ideal for general lighting applications. They are perfect for accent lighting and room lighting. LED lamps Niviss ES111 provide increased energy savings.
| Housing | Aluminum/Plastic |
|---|---|
| Rated power [W] | 11.6 |
| Nominal voltage [V] | 220-240V AC 50/60HZ |
| Light source | LED |
| Luminous flux tolerance | ±10% |
| Colour rendering index (CRI) | ≥90 |
| SDCM colour tolerance | <3 |
| Light distribution | symmetrical |
| Angle of distribution | 55˚ |
| IP protection class | IP20 |
| Impact resistance | IK08 |
| Working temperature range | -20˚C ÷ +40˚C |
| Lifetime L80B10 | ≥ 40 000h |
| Protection class | II |
| Connection | GU10 |
| Dimming | ON-OFF/PWM |
| Power supplies | inside the luminaire |
| Light emission | indirect |
