Ground Micro Brass 12V/24V DC
Brass Ground Micro 12V/24V DC
Technical drawings

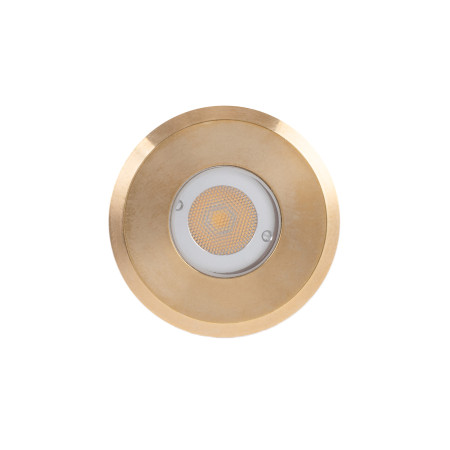

Niviss Ground Micro Brass max power 2W was designed for the most demanding customers who expect a beautiful finish not only on the front. crafted from Brass made with IP67 technology. Niviss Ground Micro Brass luminaire can be used to illuminate many places and objects, such as parks, gardens, terraces, squares, premises, swimming pools
| Housing | Brass |
|---|---|
| Glass type | Tempered |
| Working temperature range | -20˚C ÷ +55˚C |
| IP protection class | IP67 |
| Lifetime L80B10 | ≥ 60 000h |
| Impact resistance | IK10 |
| Protection class | III |
| Connection | 0.5m |
| Wiring | H07RN-F 2X1.5 |
| Dimming | PWM, ON-OFF |
| Light emission | direct |
| Colour rendering index | ≥80 |
| SDCM colour tolerance | <3 |
| Luminous flux tolerance | ±10% |
| Power supplies | apart from the luminaireordered separately |
| Light distribution | symmetrical |
| Nominal voltage [V] | 12V/24V DC |
| Rated power [W] | 2 |
| Light source | LED |
| Angle of distribution | 17˚, 31˚, 39˚ |
